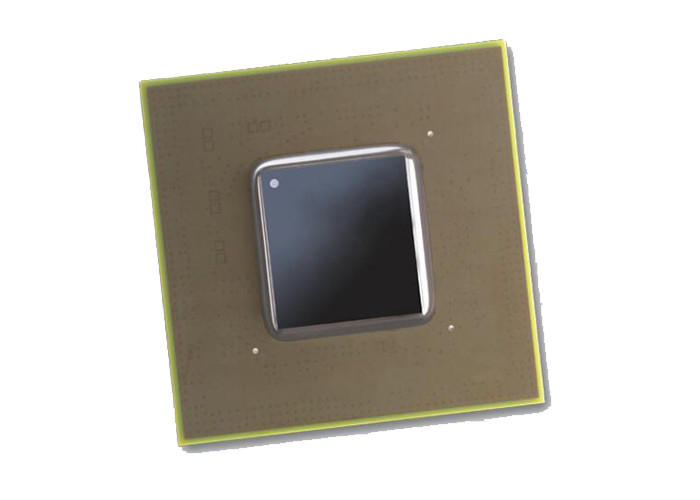

Integrated Circuit Chip SX05-0B00-00 Analog Switches IC 300MHz Power Optimized

Integrated Circuit Chip SX05-0B00-00 Analog Switches IC 300MHz Power Optimized​

Product Description Of SX05-0B00-00

SX05-0B00-00 expanders are the second series of high performance 12 Gb/s SAS expanders that utilize a new, power-optimized design to deliver best in class power utilization and the latest enhancements in SAS technology.
SX05-0B00-00 expanders support end device SAS data transfer rates of 12, 6, 3 Gb/s, and SATA data transfer rates of 6 and 3 Gb/s.

Product Attributes Of SX05-0B00-00

Features Of SX05-0B00-00

• Integrated enclosure processor – ARM Cortex-R4 @ 300 MHz
• 12 Gb/s SAS interface
• 36-, 28-, 24-port SAS/SATA expanders
• Supports 12 Gb/s, 6 Gb/s, and 3 Gb/s SAS, and 6 Gb/s and 3 Gb/s SATA data transfer rates
• Ports are non-denominational - initiator and target connect
• Supports narrow and wide port configurations
• Spread Spectrum Clocking
• Supports SSP initiator and target, SMP initiator and target, STP initiator and SATA protocols
• DataBolt Bandwidth Optimizer (all ports)

Applications Of SX05-0B00-00

• SAS/SATA drive enclosures
• External RAID subsystems
• JBOD architectures
• Server backplanes
