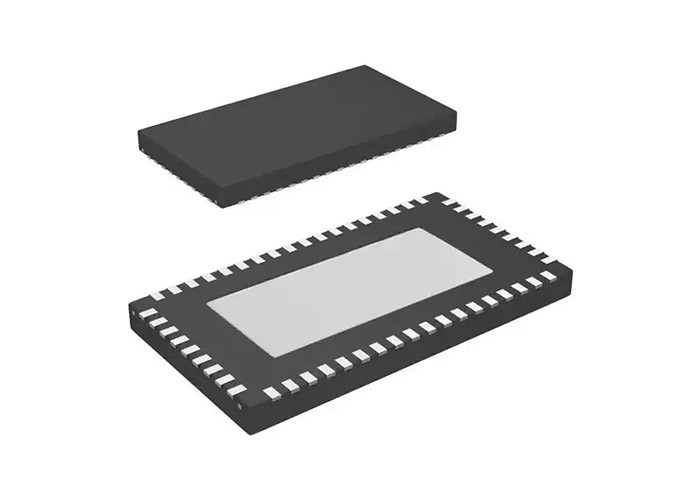

IC Chip DS80PCI800SQ 8Gbps 8-Channel Signal Buffers With Equalization And De-Emphasis

IC Chip DS80PCI800SQ 8Gbps 8-Channel Signal Buffers With Equalization And De-Emphasis

Product Description Of DS80PCI800SQ

DS80PCI800SQ is a low-power, 8-channel repeater with 4-stage input equalization, and an output de-emphasis driver to enhance the reach of PCI-Express serial links in board-to-board or cable interconnects.DS80PCI800SQ device is ideal for higher density x8 and x16 PCI-Express configurations, and it automatically detects and adapts to Gen-1, Gen-2, and Gen-3 data rates for easy system upgrade.

Specification Of DS80PCI800SQ

Features Of DS80PCI800SQ

• Automatic Rate Detect and Adaptation to Gen- 1/2/3 Speeds

• Seamless Support for Gen-3 Transmit FIR Handshake

• Receiver EQ (up to 36 dB),Transmit De- Emphasis (up to 12 dB)

• Adjustable Transmit VOD:0.8to 1.3 Vp-p(Pin Mode)

• 0.2 UI of Residual Deterministic Jitter at 8 Gbps After 40 Inches of FR4 or 10 m 30-awg PCle Cable

• Low Power Dissipation With Ability to Turn Off Unused Channels: 65 mW/Channel

• Automatic Receiver Detect(Hot-Plug)

• Multiple Configuration Modes:Pins/SMBus/Direct- EEPROM Load

• Flow-Thru Pinout: 54-Pin WQFN (10-mm x 5.5-mm,0.5-mm Pitch)

• Single Supply Voltage: 2.5 or 3.3 V (Selectable)

• ±3 KV HBM ESD Rating

• -40℃C to 85℃ Operating Temperature Range

Typical Application Block Diagram Of DS80PCI800SQ
