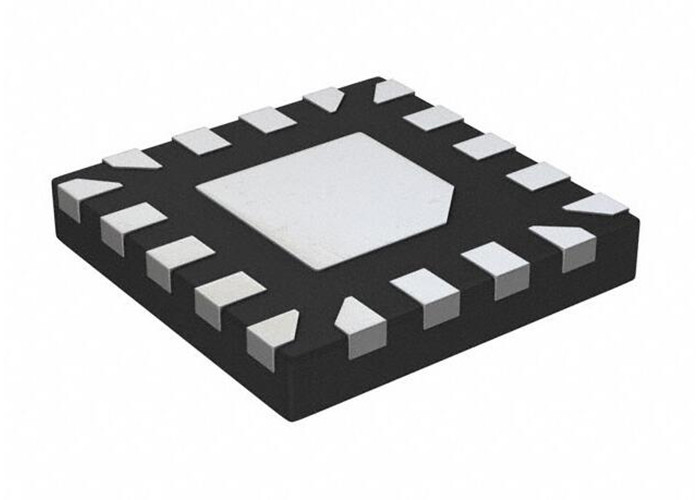

12Gbps PI3DBS12212AXUAEX 2 Channel Analog Switches IC X2QFN18 Circuit Chip

12Gbps PI3DBS12212AXUAEX 2 Channel Analog Switches IC X2QFN18 Circuit Chip

Product Description Of PI3DBS12212AXUAEX

PI3DBS12212AXUAEX is an 4 to 2 differential channel multiplexer/demultiplexer switch. This solution can switch multiple signal types up to data rate of 12Gbps.

Product Attributes Of PI3DBS12212AXUAEX

Features Of PI3DBS12212AXUAEX

• 2 Differential Channel, 2:1 Mux/DeMux
• Up to 12Gbps data rate for SAS 3.0 Application
• 10Gbps Ethernet, USB 3.2 Gen 2
• Compatible with Thunderbolt signaling, 10.3125Gbps
• Bi-directional operation
• 3dB bandwith: 10.6GHz
• Low Bit-to-Bit Skew, 1ps typ
• Low channel-to-channel skew, 7ps typ
• Low insertion loss: -1.5dB@5 GHz, -1.7dB@6 GHz
• Return loss: -19.6dB@5 GHz, -17.2dB@6 GHz
• Low Crosstalk: -30.5dB@6 GHz
• Low Off Isolation: -17.1dB@6 GHz
• Low power consumption - 200µA typ
• Supply Voltage 3.3V
• Industrial Temperature Range: -40°C to 85°C

Applications Of PI3DBS12212AXUAEX

• Routing high speed differential signals
• 10 Gigabit Ethernet
• PCI-Express 3.0
• SAS 3.0
• USB 3.2 Gen 2
