P Channel IPD06P004N Power MOSFET Transistor TO-252-3 Integrated Circuit Chip 60V

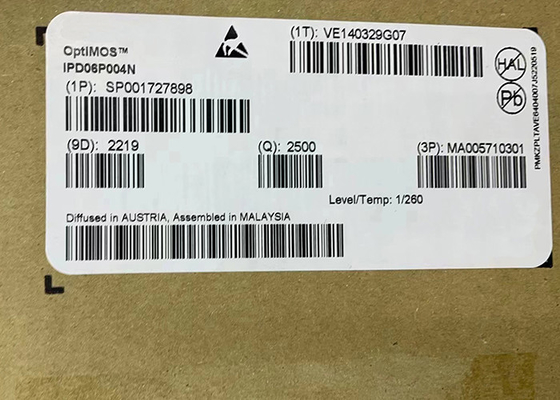

Large Image : P Channel IPD06P004N Power MOSFET Transistor TO-252-3 Integrated Circuit Chip 60V

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IPD06P004N

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PG-TO252-3
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Chat Now

P Channel IPD06P004N Power MOSFET Transistor TO-252-3 Integrated Circuit Chip 60V

Description

Part Number:	IPD06P004N	Drain To Source Voltage (Vdss):	60 V
Power Dissipation (Max):	63W (Tc)	Drive Voltage:	10V
Operating Temperature(Min):	-55°C (TJ)	Operating Temperature(Max):	175°C (TJ)
Highlight:	IPD06P004N , IPD06P004N Integrated Circuit Chip , P Channel Power MOSFET Transistor

P Channel IPD06P004N Power MOSFET Transistor TO-252-3 Integrated Circuit Chip 60V

Product Description Of IPD06P004N

IPD06P004N is 60V OptiMOS Power Transistor - P-Channel MOSFET Transistor, the package is PG-TO252-3(Surface Mount).

Specification Of IPD06P004N

Part Number	IPD06P004N
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	16.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	90mOhm @ 16.4A, 10V
Vgs(th) (Max) @ Id	4V @ 710µA
Gate Charge (Qg) (Max) @ Vgs	27 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1100 pF @ 30 V
Power Dissipation (Max)	63W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO252-3
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63

Features Of Integrated Circuit Chip

P-Channel
Verylowon-resistanceRDS(on)
100%avalanchetested
NormalLevel
Enhancementmode
Pb-freeleadplating;RoHScompliant

Block Diagram Of IPD06P004N

P Channel IPD06P004N Power MOSFET Transistor TO-252-3 Integrated Circuit Chip 60V 0
