375W Automobile Chips AFGHL75T65SQD IGBT Trench Field Stop 650V Single IGBT Transistor

375W Automobile Chips AFGHL75T65SQD IGBT Trench Field Stop 650V Single IGBT Transistor
375W Automobile Chips AFGHL75T65SQD IGBT Trench Field Stop 650V Single IGBT Transistor
375W Automobile Chips AFGHL75T65SQD IGBT Trench Field Stop 650V Single IGBT Transistor 375W Automobile Chips AFGHL75T65SQD IGBT Trench Field Stop 650V Single IGBT Transistor

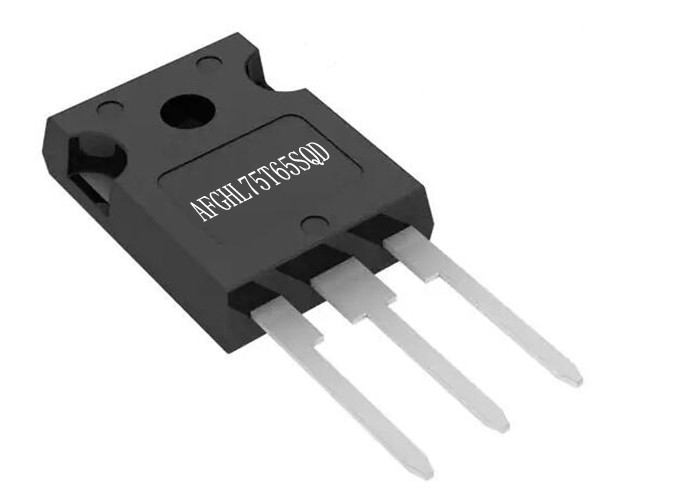

Large Image :  375W Automobile Chips AFGHL75T65SQD IGBT Trench Field Stop 650V Single IGBT Transistor

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AFGHL75T65SQD
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-247-3
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Chat Now

375W Automobile Chips AFGHL75T65SQD IGBT Trench Field Stop 650V Single IGBT Transistor

Description
Part Number: AFGHL75T65SQD Current - Collector (Ic) - Max: 80 A
Operating Temperature(Min): -55°C (TJ) Test Condition: 400V, 75A, 4.7Ohm, 15V
Operating Temperature(Max): 175°C (TJ) Switching Energy: 1.86mJ (on), 1.13mJ (off)

375W Automobile Chips AFGHL75T65SQD IGBT Trench Field Stop 650V Single IGBT Transistor​



Product Description Of AFGHL75T65SQD

AFGHL75T65SQD offers the optimum performance with both low conduction and switching losses for a high efficiency operation in various applications, especially totem pole bridgeless PFC and DCDC block as well.



Specification Of AFGHL75T65SQD

Part Number: AFGHL75T65SQD Low Saturation Voltage: VCE(Sat) = 1.6 V (Typ.) @ IC = 75 A
Power(Max): 375 W Input Type: Standard
IGBT Type: Trench Field Stop Maximum Junction Temperature: TJ = 175°C



Features Of AFGHL75T65SQD

  • Fast Switching
  • High Current Capability
  • Maximum Junction Temperature: TJ = 175°C
  • Positive Temperature Co−efficient for Easy Parallel Operating



Applications Of AFGHL75T65SQD

  • Totem Pole Bridgeless PFC



Other Supply Product Types

Part Number Package
PCI7412ZHK BGA
PCM1781DBQR SSOP16
PCM1789PWR SSOP
PCM1801U SOP-14
PCM1808PWR TSSOP14
PCM2706CPJTR TQFP-32



FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
