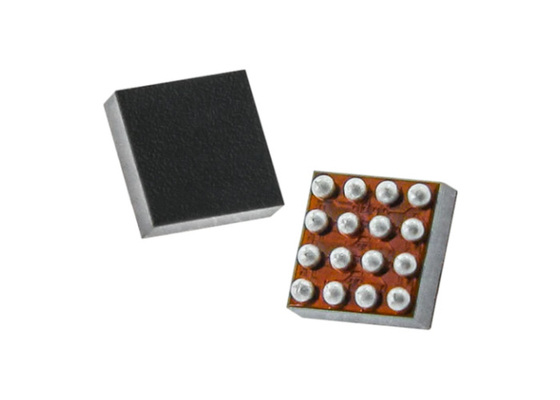

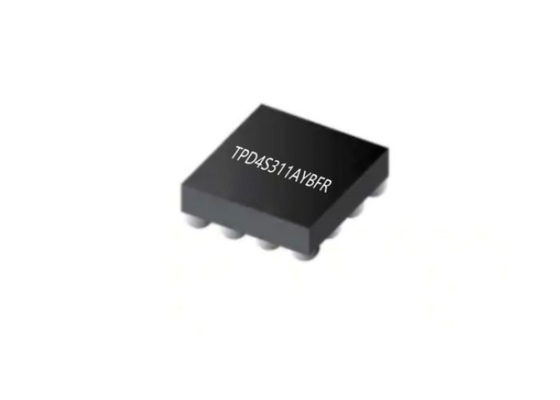

USB Interface IC TPD4S311AYBFR USB Type-C Port Protector 4-Channels 16-DSBGA

USB Interface IC TPD4S311AYBFR USB Type-C Port Protector 4-Channels 16-DSBGA

Product Description Of TPD4S311AYBFR

TPD4S311AYBFR USB Type-C Port Protector is a single-chip USB Type-C port protection device that provides 20V Short-to-VBUS overvoltage and IEC ESD protection. Many products and accessories for USB Type-C have been released that do not meet the USB Type-C specification.

Specification Of TPD4S311AYBFR

Features Of TPD4S311AYBFR

• 4-Channels of Short-to-VBUS overvoltage protection (CC1, CC2, SBU1, SBU2): 24VDC tolerant
• 4-Channels of IEC 61000-4-2 ESD protection (CC1, CC2, SBU1, SBU2)
• CC1 and CC2 Overvoltage protection FETs 600mA capable for passing VCONN power
• CC Dead battery resistors integrated for handling dead battery use case in mobile devices
• 1.69mm × 1.69mm DSBGA package

Applications Of TPD4S311AYBFR

• Desktop PC/motherboard
• Standard notebook PC
• Chromebook and WOA
• Docking station
• Port/cable adapters and dongles
• Smartphones

Functional Block Diagram Of TPD4S311AYBFR

Pin Configuration Of TPD4S311AYBFR
