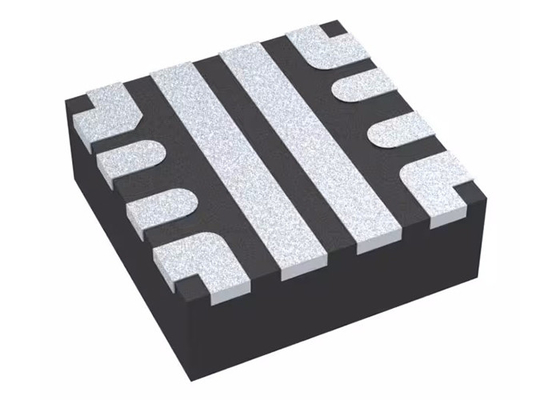

Iphone IC Chip TPS259461LRPWR Electronic Fuse Regulator High-Side 5.5A 10-VQFN

Iphone IC Chip TPS259461LRPWR Electronic Fuse Regulator High-Side 5.5A 10-VQFN

Product Description Of TPS259461LRPWR

TPS259461LRPWR is a highly integrated circuit protection and power management solution in a small package. TPS259461LRPWR provide multiple protection modes using very few external components and are a robust defense against overloads, short-circuits, voltage surges and excessive inrush current. With integrated back toback FETs, the device allows bi-directional current flow during ON state, while blocking current flow in both directions during OFF state, making it well suited for USB OTG (On-The-Go) applications.

Specification Of TPS259461LRPWR

Features Of TPS259461LRPWR

• Wide operating input voltage range: 2.7 V to 23 V

• Integrated back-to-back FETs with low onresistance

• Bi-directional current flow during ON state

• Reverse current blocking during OFF state

• Fast overvoltage protection

• Adjustable Overvoltage Lockout (OVLO) with 1.2-μs (typ.) response time

• Overcurrent protection in forward direction with load current monitor output (ILM)

• Active high enable input with adjustable Undervoltage Lockout threshold (UVLO)

• Adjustable output slew rate control (dVdt)

• Overtemperature protection

Applications Of TPS259461LRPWR

• USB On-The-Go (OTG)

• Smartphones

• Tablets

• Digital cameras

• Point of sales terminals

• Wireless chargers
