Automotive IGBT Modules FS820R08A6P2B IGBT Module Trench Field Stop Three Phase Inverter

Automotive IGBT Modules FS820R08A6P2B IGBT Module Trench Field Stop Three Phase Inverter​

Product Description Of FS820R08A6P2B

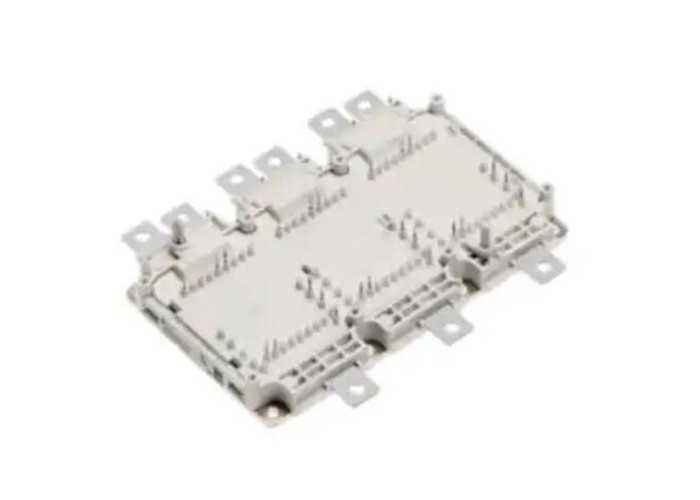

FS820R08A6P2B Drive is a very compact six-pack module (750V/820A) optimized for hybrid and electric vehicles. The power module implements the new EDT2 IGBT generation, which is an automotive Micro-Pattern Trench-Field-Stop cell design optimized for electric drive train applications.

Specification Of FS820R08A6P2B

Features Of IGBT Module

• Blocking voltage 750V
• 4.2kV DC 1sec Insulation
• High Creepage and Clearance Distances
• Compact design
• High Power Density
• Direct Cooled PinFin Base Plate
• Guiding elements for PCB and cooler assembly
• Integrated NTC temperature sensor
• PressFIT Contact Technology
• UL 94 V0 module frame

Applications Of FS820R08A6P2B

• Automotive Applications
• Hybrid Electrical Vehicles (H)EV
• Motor Drives
• Commercial Agriculture Vehicles
