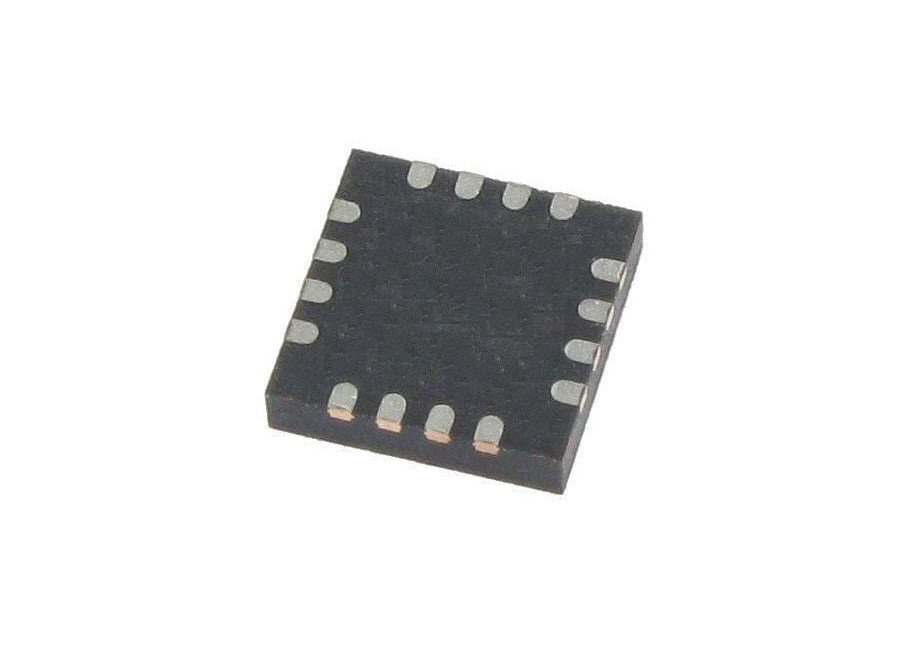

Chip Integrated Circuit A3G4250DTR MEMS Motion Sensor 3-Axis Digital Output Gyroscope

Chip Integrated Circuit A3G4250DTR MEMS Motion Sensor 3-Axis Digital Output Gyroscope

Product Description Of A3G4250DTR

A3G4250DTR is a low-power 3-axis angular rate sensor able to provide unprecedented stability at zero rate level and sensitivity over temperature and time. It includes a sensing element and an IC interface capable of providing the measured angular rate to the external world through a standard SPI digital interface.

Specification Of A3G4250DTR

Features Of A3G4250DTR

• Wide supply voltage: 2.4 V to 3.6 V

• ±245 dps full scale

• I2C/SPI digital output interface

• 16-bit rate value data output

• 8-bit temperature data output

• Two digital output lines (interrupt and data ready)

• Integrated low and high-pass filters with userselectable bandwidth

• Ultra-stable over temperature and time

• Low-voltage-compatible IOs (1.8 V)

• Embedded power-down and sleep mode

• Embedded temperature sensor

• Embedded FIFO

• High shock survivability

• Extended operating temperature range (-40 °C to +85 °C)

• ECOPACK® RoHS and “Green” compliant

• AEC-Q100 qualification

Applications Of A3G4250DTR

• In-dash car navigation

• Telematics, e-Tolling

• Motion control with MMI (man-machine interface)

• Appliances and robotics
