ADS8422IBPFBR Fully Differential Input Micropower Sampling Analog To Digital Converter

ADS8422IBPFBR Fully Differential Input Micropower Sampling Analog To Digital Converter

Product Description Of ADS8422IBPFBR

ADS8422IBPFBR is a 16-bit, 4-MHz AD converter with an internal 4.096-V reference. The device includes a 16-bit capacitor-based multi-bit SAR A/D converter with inherent sample and hold. This converter includes a full 16-bit interface and an 8-bit option where data is read using two 8-bit read cycles if necessary.

Specification Of ADS8422IBPFBR

Features Of ADS8422IBPFBR

• Fully Differential Input with Pseudo-Bipolar Input Range -4 V to +4 V

• 16-Bit NMC at 4 MSPS

• 1LSB INL Typ

• 92dB SNR, -102dB THD Typ with 100-kHz Input

• Internal 4.096-V Reference and Reference Buffer REFIN/2 Available for Setting Analog Input Common-Mode Voltage

• Zero Latency

• High-Speed Parallel Interface

• Single Supply Operation Capability

• Low Power: 155 mW at 4 MHz Typ, Flexible Power-Down Scheme

• Pin-Out Similar to ADS8412/8402

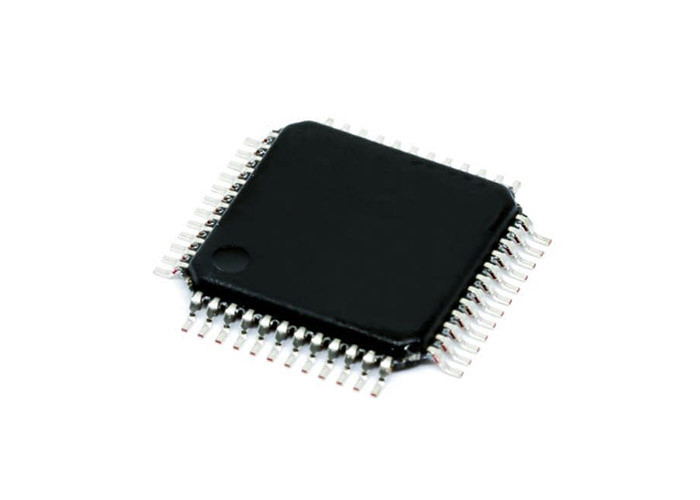

• 48-Pin 9x9 TQFP Package

Applications Of ADS8422IBPFBR

• DWDM

• Instrumentation

• High-Speed, High-Resolution, Zero Latency Data Acquisition Systems

• Transducer Interface

• Medical Instruments

• Spectrum Analysis

• ATE
