ICs Chip LED Driver TPS61161DRVR 1 Output DC DC Regulator Step-Up PWM Dimming 700mA

ICs Chip LED Driver TPS61161DRVR 1 Output DC DC Regulator Step-Up PWM Dimming 700mA
ICs Chip LED Driver TPS61161DRVR 1 Output DC DC Regulator Step-Up PWM Dimming 700mA
ICs Chip LED Driver TPS61161DRVR 1 Output DC DC Regulator Step-Up PWM Dimming 700mA ICs Chip LED Driver TPS61161DRVR 1 Output DC DC Regulator Step-Up PWM Dimming 700mA ICs Chip LED Driver TPS61161DRVR 1 Output DC DC Regulator Step-Up PWM Dimming 700mA

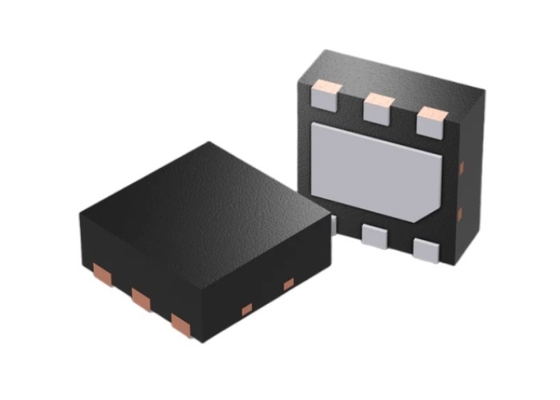

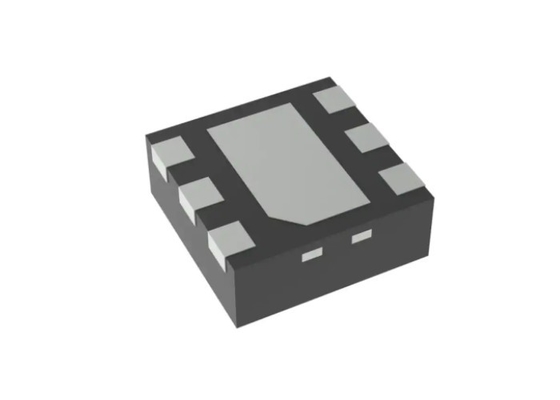

Large Image :  ICs Chip LED Driver TPS61161DRVR 1 Output DC DC Regulator Step-Up PWM Dimming 700mA

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS61161DRVR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SON6
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

ICs Chip LED Driver TPS61161DRVR 1 Output DC DC Regulator Step-Up PWM Dimming 700mA

Description
Part Number: TPS61161DRVR Number Of Outputs: 1 Output
Output Current: 700 MA Operating Frequency: 600 KHz
Output Voltage: 3.8 V High Level Output Current: 100 UA

ICs Chip LED Driver TPS61161DRVR 1 Output DC DC Regulator Step-Up PWM Dimming 700mA



Product Description Of TPS61161DRVR

TPS61161DRVR White LED Drivers have an integrated 40V switch FET with boost converters that drive-in series LEDs. Running at 600kHz fixed frequency, the boost converters reduce output ripple and enhanced conversion efficiency.



Specification Of TPS61161DRVR

Part Number TPS61161DRVR
Type
DC DC Regulator
Topology
Step-Up (Boost)
Voltage - Supply (Max)
18V
Voltage - Output
38V
Dimming
PWM
Applications
Backlight
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
6-WDFN Exposed Pad


Features Of TPS61161DRVR

  • 2.7V to 18V Input Voltage Range
  • 26V Open LED Protection (TPS61160)
  • 38V Open LED Protection (TPS61161)
  • 200mV Reference Voltage With ±2% Accuracy
  • Flexible Digital and PWM Brightness Control
  • Built-in Soft Start
  • Up to 90% Efficiency



Applications Of TPS61161DRVR

  • Cellular Phones
  • Portable Media Players
  • Ultra Mobile Devices
  • GPS Receivers
  • White LED Backlighting for Media Form Factor Display



Block Diagram Of TPS61161DRVR

ICs Chip LED Driver TPS61161DRVR 1 Output DC DC Regulator Step-Up PWM Dimming 700mA 0



Pin Configuration Of TPS61161DRVR

ICs Chip LED Driver TPS61161DRVR 1 Output DC DC Regulator Step-Up PWM Dimming 700mA 1
