TPS92638QPWPRQ1 Integrated Circuit Chip Automotive 8 Channel Linear LED Driver IC with PWM Dimming Control and Wide Input-Voltage Range 5V–40V

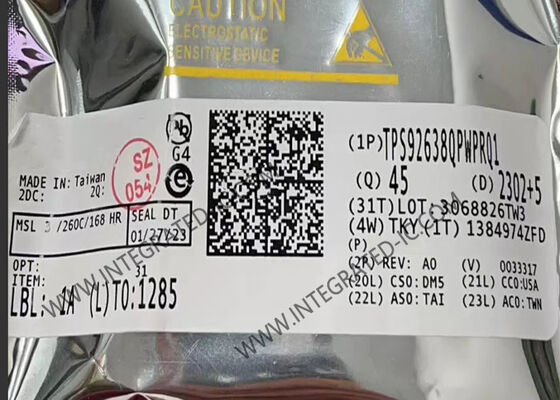

Large Image : TPS92638QPWPRQ1 Integrated Circuit Chip Automotive 8 Channel Linear LED Driver IC with PWM Dimming Control and Wide Input-Voltage Range 5V–40V

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TPS92638QPWPRQ1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	20-HTSSOP
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TPS92638QPWPRQ1 Integrated Circuit Chip Automotive 8 Channel Linear LED Driver IC with PWM Dimming Control and Wide Input-Voltage Range 5V–40V

Description

Part Number:	TPS92638QPWPRQ1	Wide Input-Voltage Range:	5 V–40 V
Turn ON/OFF Delay Time:	25 µs (typ.), 45 µs (max.)	Operating Junction Temperature Range:	–40°C To 150°C
Voltage - Supply:	5V ~ 40V	Operating Temperature(Max):	125°C (TA)
Highlight:	TPS92638QPWPRQ1 Automobile Chips , 8 Channel Linear LED Driver IC , 20HTSSOP Linear LED Driver IC

TPS92638 Integrated Circuit Chip Automotive Chips 8 Channel Linear LED Driver IC HTSSOP-20

Product Overview Of TPS92638

TPS92638 is an eight-channel linear LED driver with PWM dimming control. Its design is ideal for driving multiple strings of LEDs up to a medium power range.

Technical Specifications Of TPS92638

Part Number	TPS92638QPWPRQ1
Number of Outputs	8
Voltage - Supply (Min)	5V
Voltage - Supply (Max)	40V
Current - Output / Channel	70mA
Dimming	Analog, PWM
Applications	Automotive
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	20-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package	20-HTSSOP

Key Features Of TPS92638

8-Channel LED Driver With Analog and PWM Dimming
Wide Input-Voltage Range: 5 V-40 V
Adjustable Constant Output Current Set by Reference Resistor
PWM Dimming Input (PWM)
Turn ON/OFF Delay Time: 25 µs (typ.), 45 µs (max.)
4-Bank PWM Dimming to Control 8 Channels
Open- and Shorted-LED Detection With Deglitch
Operating Junction Temperature Range -40°C to 150°C

Related Part Numbers

TPS92638QPWPRQ1 TPS92638QPWPRQ TPS92638QPWPR TPS92638QPWP TPS92638QPW TPS92638QP TPS92638Q TPS92638

Frequently Asked Questions

Are your products original?

Yes, all products are original, new original import is our purpose.

Which Certificates do you have?

We are ISO 9001:2015 Certified Company and member of ERAI.

Can you support small quantity order or sample? Is the sample free?

Yes, we support sample order and small order. Sample cost is different according to your order or project.

How to ship my order? Is it safe?

We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.

What about the lead time?

We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
