Product Details:
|
| Part Number: | BTS5090-2EKA | Compatible Logic Inputs: | 3.3 V And 5 V |
|---|---|---|---|
| Operating Voltage Range: | 5 V ~ 28 V | Maximum Supply Voltage: | 41V |
| Typical Current Sense Ratio: | 1500 | Minimum Current Limitation: | 20A |

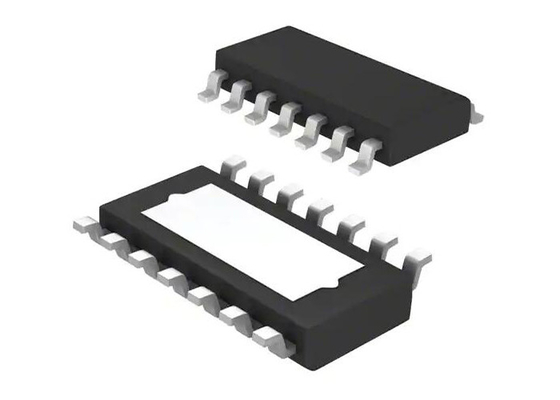

Dual Channel BTS5090-2EKA Smart High Side Power Switch 14SOIC Load Drivers IC 90mΩ
Product Description Of BTS5090-2EKA
BTS5090-2EKA is a 90 mΩ dual channel Smart High-Side Power Switch, embedded in a PG-DSO-14-40 EP, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump.
Specification Of BTS5090-2EKA
| Part Number | BTS5090-2EKA |
|
Switch Type
|
General Purpose
|
|
Number of Outputs
|
2
|
|
Ratio - Input:Output
|
1:1
|
|
Output Configuration
|
High Side
|
|
Output Type
|
N-Channel
|
|
Interface
|
On/Off
|
|
Voltage - Load
|
5V ~ 28V
|
|
Voltage - Supply (Vcc/Vdd)
|
Not Required
|
|
Current - Output (Max)
|
2.5A
|
|
Rds On (Typ)
|
90mOhm
|
|
Input Type
|
Non-Inverting
|
|
Fault Protection
|
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
PG-DSO-14-40-EP
|
|
Package / Case
|
14-SOIC (0.154", 3.90mm Width) Exposed Pad
|
