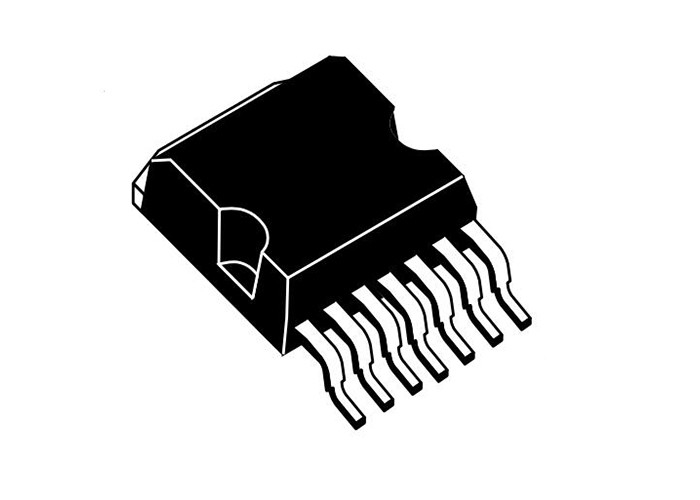

30A SIC Integrated Circuit Chip SCT070H120G3AG H²PAK-7 Silicon Carbide Power MOSFET

Large Image : 30A SIC Integrated Circuit Chip SCT070H120G3AG H²PAK-7 Silicon Carbide Power MOSFET

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SCT070H120G3AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	H²PAK-7
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

30A SIC Integrated Circuit Chip SCT070H120G3AG H²PAK-7 Silicon Carbide Power MOSFET

Description

Part Number:	SCT070H120G3AG	Drain-source Voltage:	1200V
Gate-source Voltage:	-10V To 22V	Drain Current (continuous) At TC = 25 °C:	30A
Drain Current (continuous) At TC = 100 °C:	20A	Total Power Dissipation At TC = 25 °C:	223W

30A SIC Integrated Circuit Chip SCT070H120G3AG H²PAK-7 Silicon Carbide Power MOSFET

Product Description Of SCT070H120G3AG

SCT070H120G3AG features a very low RDS(on) over the entire temperature range combined with low capacitances and very high switching operations.

Specification Of SCT070H120G3AG

Part Number:	SCT070H120G3AG	Drain-Source Voltage:	1200V
Drain Current (Pulsed):	100A	Zero Gate Voltage Drain Current(VGS = 0 V, VDS = 1200 V) Max:	10µA
Gate-Body Leakage Current(VDS = 0V, VGS = -10 To 22V)Max:	±100 NA	Continuous Diode Forward Current(TC = 25 °C):	30A

Applications Of SCT070H120G3AG

DC/DC converter for EV/HEV

Typical Output Characteristics (TJ = 25 °C) Of SCT070H120G3AG

30A SIC Integrated Circuit Chip SCT070H120G3AG H²PAK-7 Silicon Carbide Power MOSFET 0

Other Electronic Components In Stock

Part Number	Package
IRF3315	TO-220
IRF3703	TO-220
IRF3704	TO-263
IRF3805	TO-263
IRF3808	TO-220
IRF5810	SOT23-6

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
