Integrated Circuit Chip VNQ500PEPTR-E Quad Channel High Side Driver IC PowerSSO-12

Integrated Circuit Chip VNQ500PEPTR-E Quad Channel High Side Driver IC PowerSSO-12
Integrated Circuit Chip VNQ500PEPTR-E Quad Channel High Side Driver IC PowerSSO-12
Integrated Circuit Chip VNQ500PEPTR-E Quad Channel High Side Driver IC PowerSSO-12 Integrated Circuit Chip VNQ500PEPTR-E Quad Channel High Side Driver IC PowerSSO-12

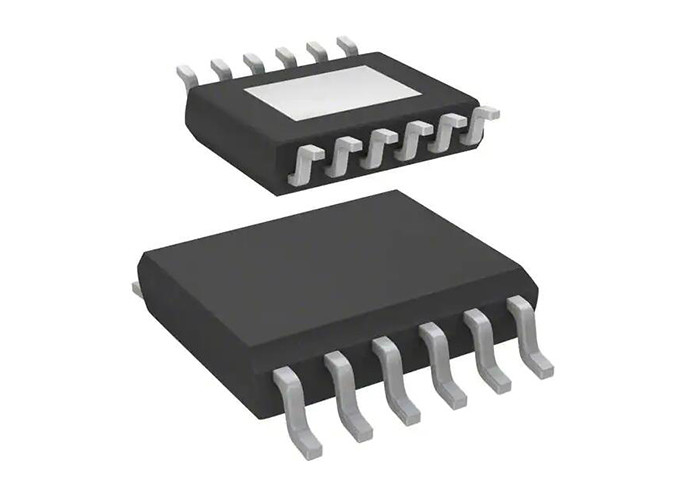

Large Image :  Integrated Circuit Chip VNQ500PEPTR-E Quad Channel High Side Driver IC PowerSSO-12

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: VNQ500PEPTR-E
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PowerSSO-12
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Integrated Circuit Chip VNQ500PEPTR-E Quad Channel High Side Driver IC PowerSSO-12

Description
Part Number: VNQ500PEPTR-E Switch Type: General Purpose
Number Of Outputs: 4 Output Configuration: High Side
Interface: On/Off Voltage - Load: 5.5V ~ 36V

Integrated Circuit Chip VNQ500PEPTR-E Quad Channel High Side Driver IC PowerSSO-12​



Product Description Of VNQ500PEPTR-E

VNQ500PEPTR-E is a monolithic device designed in VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground.



Specification Of VNQ500PEPTR-E

Part Number VNQ500PEPTR-E
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
400mA
Rds On (Typ)
500mOhm (Max)
Input Type
Non-Inverting
Fault Protection
Current Limiting (Fixed), Over Temperature, UVLO
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
PowerSSO-12
Package / Case
12-PowerLSOP (0.154", 3.90mm Width)



Features Of VNQ500PEPTR-E

  • Protection against loss of ground
  • Undervoltage shutdown
  • In compliance with the 2002/95/EC european directive
  • CMOS compatible I/O’s
  • Junction over temperature protection and diagnostic
  • Chip Enable
  • Shorted load protection
  • Very low standby current
  • Current limitation
