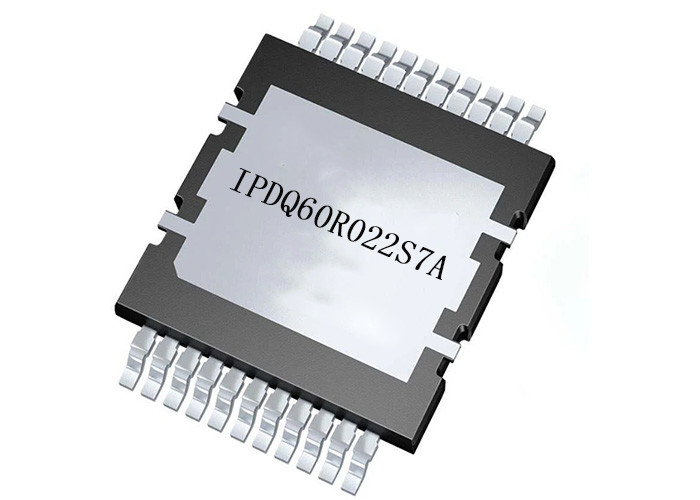

Integrated Circuit Chip IPDQ60R022S7A N-Channel 600V 24A 416W Transistors

Large Image : Integrated Circuit Chip IPDQ60R022S7A N-Channel 600V 24A 416W Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IPDQ60R022S7A

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PG-HDSOP-22-1
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Integrated Circuit Chip IPDQ60R022S7A N-Channel 600V 24A 416W Transistors

Description

Part Number:	IPDQ60R022S7A	Pd - Power Dissipation:	416 W
Rds On - Drain-Source Resistance:	22 MOhms	Vgs Th - Gate-Source Threshold Voltage:	4.5 V
FET Type:	N-Channel	Input Capacitance (Ciss) (Max) @ Vds:	5640 PF @ 300 V

Integrated Circuit Chip IPDQ60R022S7A N-Channel 600V 24A 416W Transistors

Product Description Of IPDQ60R022S7A

IPDQ60R022S7A technology enables best in class RDs(on) in smallest footprint.Kelvin Source pin improves switching performance at high current.

Specification Of IPDQ60R022S7A

Part Number:	IPDQ60R022S7A	Operating Temperature:	-40°C ~ 150°C (TJ)
Vgs (Max):	±20V	Vgs - Gate-Source Voltage:	- 20 C, + 20 C
Vgs Th - Gate-Source Threshold Voltage:	4.5 V	Qg - Gate Charge:	196 NC

Unclamped inductive waveform Of IPDQ60R022S7A

Integrated Circuit Chip IPDQ60R022S7A N-Channel 600V 24A 416W Transistors 0
