1200V 380A FS380R12A6T4B IGBT Module Trench Field Stop Three Phase Inverter

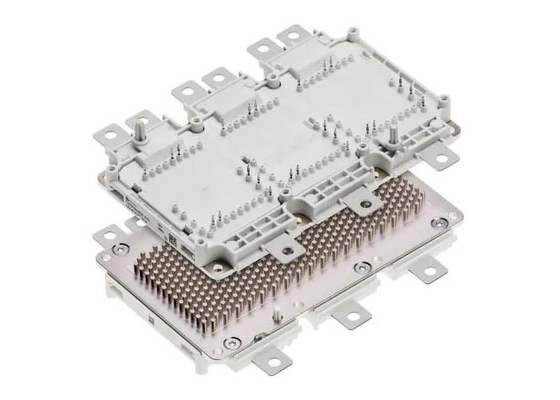

Large Image : 1200V 380A FS380R12A6T4B IGBT Module Trench Field Stop Three Phase Inverter

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	FS380R12A6T4B

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

1200V 380A FS380R12A6T4B IGBT Module Trench Field Stop Three Phase Inverter

Description

Part Number:	FS380R12A6T4B	IGBT Type:	Trench Field Stop
Configuration:	Three Phase Inverter	Voltage - Collector Emitter Breakdown:	1200 V
Current - Collector (Ic):	380 A	Power - Max:	870 W

1200V 380A FS380R12A6T4B IGBT Module Trench Field Stop Three Phase Inverter

Product Description Of FS380R12A6T4B

FS380R12A6T4B is a very compact six-pack module (1200V/380A) optimized for hybrid and electric vehicles.

Specification Of FS380R12A6T4B

Part Number	FS380R12A6T4B
Vce(on) (Max) @ Vge, Ic	1.95V @ 15V, 250A
Current - Collector Cutoff (Max)	1 mA
Input Capacitance (Cies) @ Vce	19000 pF @ 25 V
Input	Standard

Features Of Automotive IGBT Modules

Blocking voltage 1200V
Low VCEsat
Low Switching Losses
Low Qg and Crss
Low Inductive Design
Tvj op = 150°C
