1200V Transistors FS03MR12A6MA1B Silicon Carbide MOSFET Modules 20mW Chassis Mount

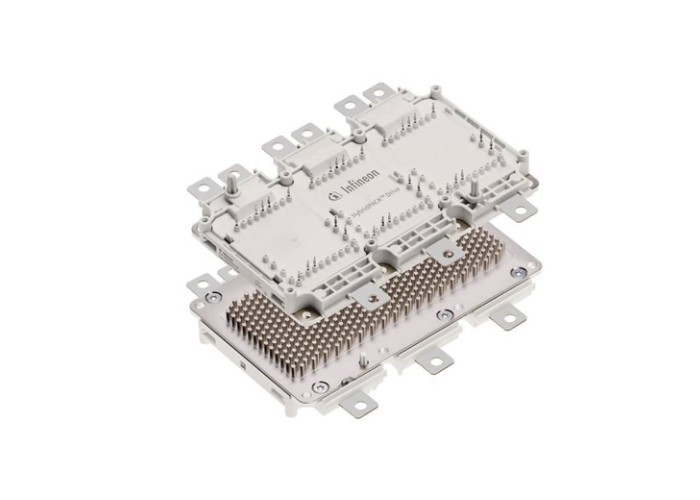

Large Image : 1200V Transistors FS03MR12A6MA1B Silicon Carbide MOSFET Modules 20mW Chassis Mount

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	FS03MR12A6MA1B

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

1200V Transistors FS03MR12A6MA1B Silicon Carbide MOSFET Modules 20mW Chassis Mount

Description

Part Number:	FS03MR12A6MA1B	Series:	HybridPACK™
Technology:	Silicon Carbide (SiC)	Configuration:	6 N-Channel (3-Phase Bridge)
Drain To Source Voltage (Vdss):	1200V (1.2kV)	Current - Continuous Drain (Id) @ 25°C:	400A (Tj)

1200V Transistors FS03MR12A6MA1B Silicon Carbide MOSFET Modules 20mW Chassis Mount

Product Description Of FS03MR12A6MA1B

FS03MR12A6MA1B HybridPACK™ Drive is a very compact six-pack module (1200V/400A) optimized for hybrid and electric vehicles.

Specification Of FS03MR12A6MA1B

Part Number	FS03MR12A6MA1B
Rds On (Max) @ Id, Vgs	3.7mOhm @ 400A, 15V
Vgs(th) (Max) @ Id	5.55V @ 240mA
Gate Charge (Qg) (Max) @ Vgs	1320nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	42500pF @ 600V
Power - Max	20mW
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module

Features Of FS03MR12A6MA1B

New semiconductor material - Silicon Carbide
Blocking voltage 1200V
Low RDSon
Low Switching Losses
Low Og and Crss
Low Inductive Design <10nH
T vj op= 150°C

Applications Of FS03MR12A6MA1B

Automotive Applications
Hybrid Electrical Vehides (H)EV
Motor Drives

Circuit Diagram Of FS03MR12A6MA1B

1200V Transistors FS03MR12A6MA1B Silicon Carbide MOSFET Modules 20mW Chassis Mount 0
