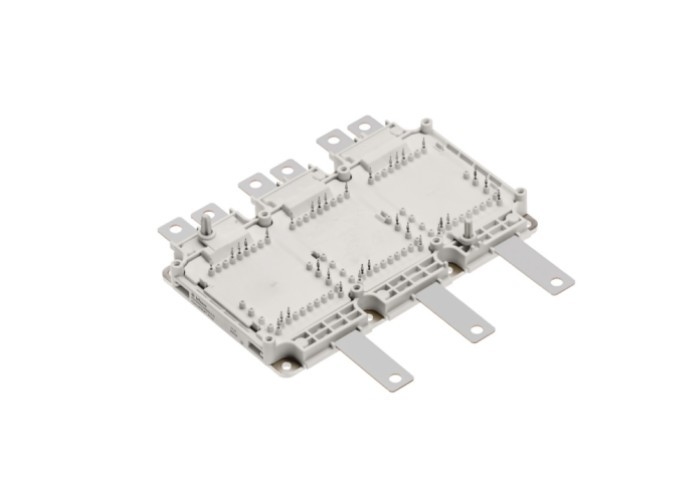

Automotive IGBT Modules FS03MR12A6MA1LB Mosfet Array 1.2kV 400A 20mW Chassis Mount

Automotive IGBT Modules FS03MR12A6MA1LB Mosfet Array 1.2kV 400A 20mW Chassis Mount
Automotive IGBT Modules FS03MR12A6MA1LB Mosfet Array 1.2kV 400A 20mW Chassis Mount
Automotive IGBT Modules FS03MR12A6MA1LB Mosfet Array 1.2kV 400A 20mW Chassis Mount Automotive IGBT Modules FS03MR12A6MA1LB Mosfet Array 1.2kV 400A 20mW Chassis Mount

Large Image :  Automotive IGBT Modules FS03MR12A6MA1LB Mosfet Array 1.2kV 400A 20mW Chassis Mount

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: FS03MR12A6MA1LB
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: Module
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Automotive IGBT Modules FS03MR12A6MA1LB Mosfet Array 1.2kV 400A 20mW Chassis Mount

Description
Part Number: FS03MR12A6MA1LB Configuration: Sixpack
ID: 400A Qualification: Automotive
RDS (on) (@ Tj = 25°C): 2.75 MΩ Supplier Device Package: AG-HYBRIDD-2

Automotive IGBT Modules FS03MR12A6MA1LB Mosfet Array 1.2kV 400A 20mW Chassis Mount



Product Description Of FS03MR12A6MA1LB

FS03MR12A6MA1LB HybridPACK™ Drive module with CoolSiC™ Automotive MOSFET.



Specification Of FS03MR12A6MA1LB

Part Number: FS03MR12A6MA1B Series: HybridPACK™
Technology: Silicon Carbide (SiC) Configuration: 6 N-Channel (3-Phase Bridge)
Drain To Source Voltage (Vdss): 1200V (1.2kV) Current - Continuous Drain (Id) @ 25°C: 400A (Tj)



Features Of FS03MR12A6MA1LB

  • 4.2kV DC 1sec Insulation
  • High Creepage and Clearance Distances
  • Compact design
  • High Power Density
  • Direct Cooled PinFin Base Plate
  • High Performance Si3N4 Ceramic
  • Guiding elements for PCB and cooler assembly
  • Integrated NTC temperature sensor
  • PressFIT Contact Technology
  • RoHS compliant
  • UL 94 V0 module frame



Applications Of FS03MR12A6MA1LB

  • Commercial Agriculture Vehicles
  • Main inverter



Other Supply Product Types

Part Number Package
PKG4319PI MODULE
FS600R07A2E3 MODULE
KIA7809AF-RTF TO-252
OPA2234U SOP8
PC16552DVX PLCC44
MCIMX6U6AVM08AB BGA-624



FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
