Automotive IGBT Modules FS200R07A1E3 790W Trench Field Stop IGBT Modules 650V

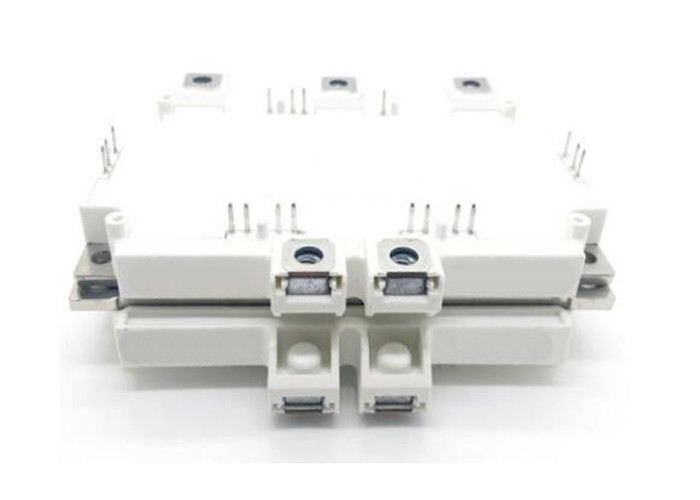

Large Image : Automotive IGBT Modules FS200R07A1E3 790W Trench Field Stop IGBT Modules 650V

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	FS200R07A1E3

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Automotive IGBT Modules FS200R07A1E3 790W Trench Field Stop IGBT Modules 650V

Description

Part Number:	FS200R07A1E3	Power - Max:	790 W
IGBT Type:	Trench Field Stop	Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount	Configuration:	Three Phase Inverter

Automotive IGBT Modules FS200R07A1E3 790W Trench Field Stop IGBT Modules 650V

Product Description Of FS200R07A1E3
FS200R07A1E3 is HybridPACK™1 module with Trench/Fieldstop IGBT 3 and Emitter Controlled 3 diode and NTC.

Specification Of FS200R07A1E3

Part Number:	FS200R07A1E3	Current - Collector (Ic) (Max):	250 A
Input Capacitance (Cies) @ Vce:	13 NF @ 25 V	Current - Collector Cutoff (Max):	1 MA
Vce(On) (Max) @ Vge, Ic:	1.9V @ 15V, 200A	Voltage - Collector Emitter Breakdown (Max):	650 V

Features Of Automotive IGBT Modules

Niedrige Schaltverluste
Trench IGBT 3
VCES = 650V
Tvjop=150°C
Integrierter NTC Temperatur Sensor
