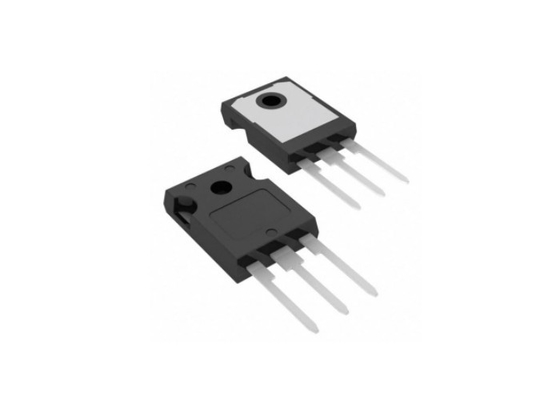

Transistors FGHL40T65MQDT IGBT Trench Field Stop 650V 60A 23 W Through Hole TO-247-3

Description
Part Number: FGHL40T65MQDT IGBT Type: Trench Field Stop
Voltage - Collector Emitter Breakdown (Max): 650 V Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 40A
Current - Collector (Ic) (Max): 60 A Current - Collector Pulsed (Icm): 160 A

Transistors FGHL40T65MQDT IGBT Trench Field Stop 650V 60A 23 W Through Hole TO-247-3



Product Description Of FGHL40T65MQDT

FGHL40T65MQDT Field stop 4th generation mid speed IGBT technology copacked with full rated current diode.



Product Attributes Of FGHL40T65MQDT

Part Number
FGHL40T65MQDT
Power - Max
238 W
Switching Energy
880µJ (on), 490µJ (off)
Input Type
Standard
Gate Charge
80 nC
Td (on/off) @ 25°C
18ns/75ns
Test Condition
400V, 40A, 6Ohm, 15V
Reverse Recovery Time (trr)
86 ns
Operating Temperature
-55°C ~ 175°C (TJ)
Mounting Type
Through Hole
Package / Case
TO-247-3



Features Of FGHL40T65MQDT

  • Maximum Junction Temperature: TJ = 175°C
  • Positive Temperature Co−efficient for Easy Parallel Operating
  • High Current Capability
  • Low Saturation Voltage: VCE(Sat) = 1.45 V (Typ.) @ IC = 40 A
  • 100% of the Parts are Tested for ILM (Note 2)
  • Smooth and Optimized Switching
  • Tight Parameter Distribution
  • RoHS Compliant



Applications Of FGHL40T65MQDT

  • Solar Inverter
  • UPS, ESS
  • PFC, Converters



Block Diagram Of FGHL40T65MQDT

Transistors FGHL40T65MQDT IGBT Trench Field Stop 650V 60A 23 W Through Hole TO-247-3 0



Marking Diagram Of FGHL40T65MQDT

Transistors FGHL40T65MQDT IGBT Trench Field Stop 650V 60A 23 W Through Hole TO-247-3 1
