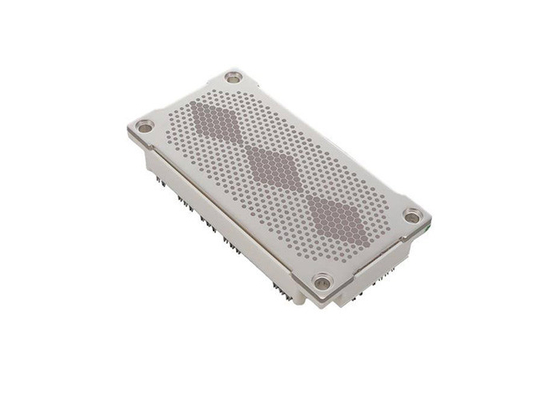

FP150R12N3T7PB11BPSA1 IGBT Module Trench Field Stop Three Phase Inverter

FP150R12N3T7PB11BPSA1 IGBT Module Trench Field Stop Three Phase Inverter

FP150R12N3T7PB11BPSA1 IGBT Module Trench Field Stop Three Phase Inverter

Large Image : FP150R12N3T7PB11BPSA1 IGBT Module Trench Field Stop Three Phase Inverter

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	FP150R12N3T7PB11BPSA1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

FP150R12N3T7PB11BPSA1 IGBT Module Trench Field Stop Three Phase Inverter

Description

Part Number:	FP150R12N3T7PB11BPSA1	Product Status:	Active
IGBT Type:	Trench Field Stop	Configuration:	Three Phase Inverter With Brake
Collector- Emitter Voltage:	1200 V	Collector-Emitter Saturation Voltage:	1.55 V

FP150R12N3T7PB11BPSA1 IGBT Module Trench Field Stop Three Phase Inverter

Product Description Of FP150R12N3T7PB11BPSA1

FP150R12N3T7PB11BPSA1 is IGBT Module Trench Field Stop Three Phase Inverter with Brake.FP150R12N3T7PB11BPSA1 device is qualified for industrial applications.

Specification Of FP150R12N3T7PB11BPSA1

Part Number	FP150R12N3T7PB11BPSA1
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	150 A
Power - Max	20 mW
Vce(on) (Max) @ Vge, Ic	1.8V @ 15V, 150A

Features Of Automotive IGBT Modules

Electrical features
VCES = 1200 V
IC nom = 150 A / ICRM = 300 A
