Automotive IGBT Modules FP200R12N3T7B11BPSA1 20 mW Chassis Mount IGBT Modules

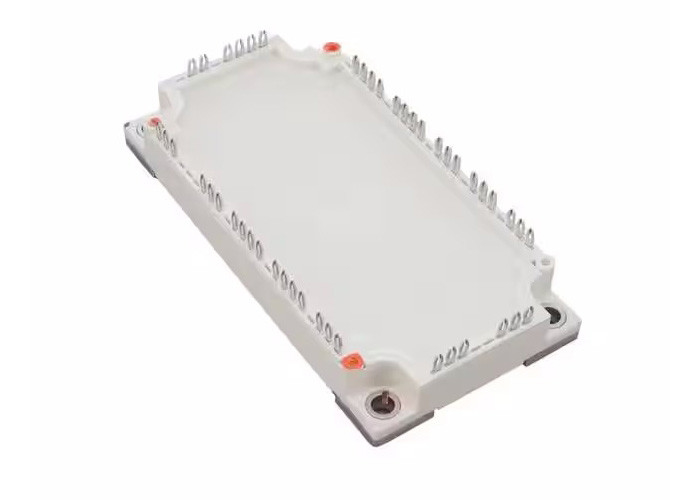

Large Image : Automotive IGBT Modules FP200R12N3T7B11BPSA1 20 mW Chassis Mount IGBT Modules

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	FP200R12N3T7B11BPSA1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Automotive IGBT Modules FP200R12N3T7B11BPSA1 20 mW Chassis Mount IGBT Modules

Description

Part Number:	FP200R12N3T7B11BPSA1	Power - Max:	20 MW
VCEO Max:	1200 V	Continuous Collector Current At 25 C:	200 A
Gate Emitter Voltage:	20 V	Technology:	Si

Automotive IGBT Modules FP200R12N3T7B11BPSA1 20 mW Chassis Mount IGBT Modules

Product Description Of FP200R12N3T7B11BPSA1

FP200R12N3T7B11BPSA1 modules have an emitter-controlled 7-diode and NTC/pre-applied thermal interface material.

Specification Of FP200R12N3T7B11BPSA1

Part Number	FP200R12N3T7B11BPSA1
Current - Collector Cutoff (Max)	20 µA
Input Capacitance (Cies) @ Vce	40.3 nF @ 25 V
Input	Three Phase Bridge Rectifier
NTC Thermistor	Yes

Features Of Automotive IGBT Modules

TRENCHSTOPTM IGBT7
Overload operation up to 175°C
Low VCE,sat
