Silicon Carbide DF23MR12W1M1PB11BPSA1 Automotive IGBT Modules 20mW 2N-Channel

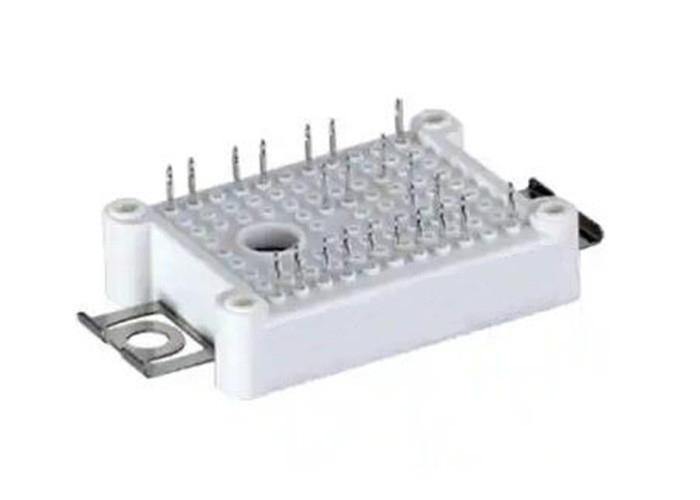

Large Image : Silicon Carbide DF23MR12W1M1PB11BPSA1 Automotive IGBT Modules 20mW 2N-Channel

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	DF23MR12W1M1PB11BPSA1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Silicon Carbide DF23MR12W1M1PB11BPSA1 Automotive IGBT Modules 20mW 2N-Channel

Description

Part Number:	DF23MR12W1M1PB11BPSA1	Technology:	Silicon Carbide (SiC)
Drain To Source Voltage (Vdss):	1200V (1.2kV)	Rds On (Max) @ Id, Vgs:	45mOhm @ 25A, 15V
Current - Continuous Drain (Id) @ 25°C:	25A (Tj)	Configuration:	2 N-Channel (Dual)

Silicon Carbide DF23MR12W1M1PB11BPSA1 Automotive IGBT Modules 20mW 2N-Channel

Product Description Of DF23MR12W1M1PB11BPSA1

DF23MR12W1M1PB11BPSA1 is Booster 1200 V CoolSiC™ MOSFET Module, 2 N-Channel (Dual) Transistors, Silicon Carbide (SiC) Module.

Specification Of DF23MR12W1M1PB11BPSA1

Part Number	DF23MR12W1M1PB11BPSA1
Gate Charge (Qg) (Max) @ Vgs	62nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	1840pF @ 800V
Power - Max	20mW
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	AG-EASY1B-2

Features Of DF23MR12W1M1PB11BPSA1

CoolSiC Schottky Diode Gen 5 Cool
High current density
Integrierter NTC Temperatur Sensor
