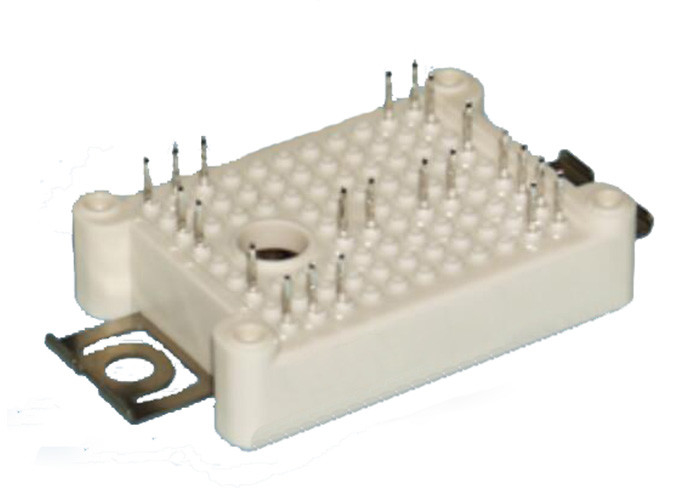

20mW Automotive IGBT Modules DF23MR12W1M1B11BPSA1 Silicon Carbide MOSFET Modules

20mW Automotive IGBT Modules DF23MR12W1M1B11BPSA1 Silicon Carbide MOSFET Modules

20mW Automotive IGBT Modules DF23MR12W1M1B11BPSA1 Silicon Carbide MOSFET Modules

Large Image : 20mW Automotive IGBT Modules DF23MR12W1M1B11BPSA1 Silicon Carbide MOSFET Modules

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	DF23MR12W1M1B11BPSA1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

20mW Automotive IGBT Modules DF23MR12W1M1B11BPSA1 Silicon Carbide MOSFET Modules

Description

Part Number:	DF23MR12W1M1B11BPSA1	VDSS:	1200V
ID Nom:	25A	IDRM:	50A
Configuration:	2 N-Channel (Dual)	Rds On (Max) @ Id, Vgs:	45mOhm @ 25A, 15V (Typ)

20mW Automotive IGBT Modules DF23MR12W1M1B11BPSA1 Silicon Carbide MOSFET Modules

Product Description Of DF23MR12W1M1B11BPSA1

DF23MR12W1M1B11BPSA1 is Silicon Carbide MOSFET Modules, Mosfet Array 1200V, Chassis Mount.

Specification Of DF23MR12W1M1B11BPSA1

Part Number	DF23MR12W1M1B11BPSA1
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	25A (Tj)
Rds On (Max) @ Id, Vgs	45mOhm @ 25A, 15V (Typ)
Vgs(th) (Max) @ Id	5.55V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	62nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	1840pF @ 800V

Features Of DF23MR12W1M1B11BPSA1

Highest efficiency for reduced cooling effort
Higher frequency operation
Increased power density
Optimized customer’s development cycle time and cost
