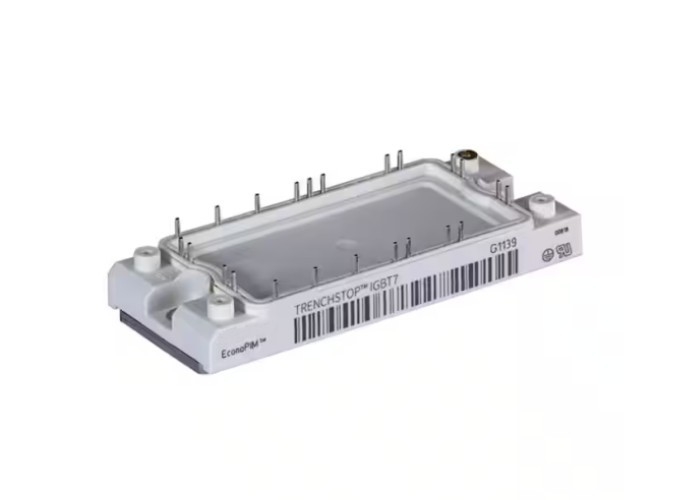

1200V 100A IGBT Module FP100R12N2T7B11BPSA1 Trench Field Stop Three Phase Inverter

1200V 100A IGBT Module FP100R12N2T7B11BPSA1 Trench Field Stop Three Phase Inverter

1200V 100A IGBT Module FP100R12N2T7B11BPSA1 Trench Field Stop Three Phase Inverter

Large Image : 1200V 100A IGBT Module FP100R12N2T7B11BPSA1 Trench Field Stop Three Phase Inverter

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	FP100R12N2T7B11BPSA1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

1200V 100A IGBT Module FP100R12N2T7B11BPSA1 Trench Field Stop Three Phase Inverter

Description

Part Number:	FP100R12N2T7B11BPSA1	Series:	EconoPIM™ 2
IGBT Type:	Trench Field Stop	Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	10 A	Power - Max:	20 MW

1200V 100A IGBT Module FP100R12N2T7B11BPSA1 Trench Field Stop Three Phase Inverter

Product Description Of FP100R12N2T7B11BPSA1

FP100R12N2T7B11BPSA1 1200V PIM IGBT Modules offer TRENCHSTOP™ IGBT7 and EC7 diode technology based on the latest micro-pattern trenches technology.

Specification Of FP100R12N2T7B11BPSA1

Part Number	FP100R12N2T7B11BPSA1
Product:	IGBT Silicon Modules
Configuration:	3-Phase Inverter
Collector-Emitter Saturation Voltage:	1.5 V
Gate-Emitter Leakage Current:	100 nA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 175 C

Features Of FP100R12N2T7B11BPSA1

Electrical features
VCES = 1200 V
IC nom = 100 A / ICRM = 200 A
Low VCEsat
Overload operation up to 175°C
TRENCHSTOPTM IGBT7

Applications Of FP100R12N2T7B11BPSA1

Auxiliary inverters
Motor drives
Servo drives

Other Supply Product Types

Part Number	Package
SSD2123M1Z	SMD
OPA335AIDR	SOP8
ISL6262ACRZ	QFN48
LP5990TMX-2.8	DSBGA
LM4674ATLX	DSBGA-16
TDA8350Q	ZIP-13

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
