Automotive IGBT Modules FF6MR12KM1PHOSA1 1200V CoolSiC MOSFET 2N-Channel Module

Automotive IGBT Modules FF6MR12KM1PHOSA1 1200V CoolSiC MOSFET 2N-Channel Module

Automotive IGBT Modules FF6MR12KM1PHOSA1 1200V CoolSiC MOSFET 2N-Channel Module

Large Image : Automotive IGBT Modules FF6MR12KM1PHOSA1 1200V CoolSiC MOSFET 2N-Channel Module

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	FF6MR12KM1PHOSA1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Automotive IGBT Modules FF6MR12KM1PHOSA1 1200V CoolSiC MOSFET 2N-Channel Module

Description

Part Number:	FF6MR12KM1PHOSA1	ID Nom:	250A
Technology:	Silicon Carbide (SiC)	IDRM:	500A
Operating Temperature:	-40°C ~ 150°C (TJ)	VDSS:	1200V

Automotive IGBT Modules FF6MR12KM1PHOSA1 1200V CoolSiC MOSFET 2N-Channel Module

Product Description Of FF6MR12KM1PHOSA1

FF6MR12KM1PHOSA1 is 62mm C-Series module with CoolSiC™ Trench MOSFET and pre-applied Thermal Interface Material.

Specification Of FF6MR12KM1PHOSA1

Part Number	FF6MR12KM1PHOSA1
Configuration	2 N-Channel (Half Bridge)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	250A (Tc)
Rds On (Max) @ Id, Vgs	5.81mOhm @ 250A, 15V
Vgs(th) (Max) @ Id	5.15V @ 80mA
Gate Charge (Qg) (Max) @ Vgs	496nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	14700pF @ 800V
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	AG-62MM

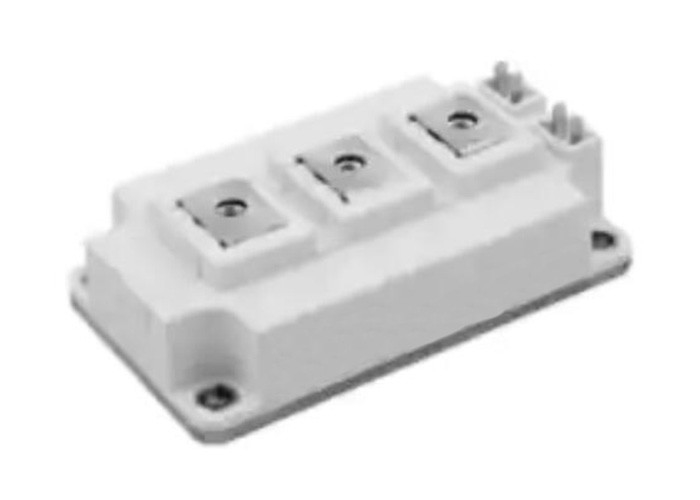

Package Photo Of FF6MR12KM1PHOSA1

Automotive IGBT Modules FF6MR12KM1PHOSA1 1200V CoolSiC MOSFET 2N-Channel Module 0
