Dual 1200V CoolSiC Module FF23MR12W1M1B11BOMA1 Automotive IGBT Modules 50A 20mW

Dual 1200V CoolSiC Module FF23MR12W1M1B11BOMA1 Automotive IGBT Modules 50A 20mW
Dual 1200V CoolSiC Module FF23MR12W1M1B11BOMA1 Automotive IGBT Modules 50A 20mW
Dual 1200V CoolSiC Module FF23MR12W1M1B11BOMA1 Automotive IGBT Modules 50A 20mW Dual 1200V CoolSiC Module FF23MR12W1M1B11BOMA1 Automotive IGBT Modules 50A 20mW

Large Image :  Dual 1200V CoolSiC Module FF23MR12W1M1B11BOMA1 Automotive IGBT Modules 50A 20mW

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: FF23MR12W1M1B11BOMA1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: Module
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Dual 1200V CoolSiC Module FF23MR12W1M1B11BOMA1 Automotive IGBT Modules 50A 20mW

Description
Part Number: FF23MR12W1M1B11BOMA1 Mounting Type: Chassis Mount
Rated Resistance(TNTC = 25°C) Typ: 5,00 KΩ Drain-source Voltage(Tvj = 25°C ): 1200V
Power - Max: 20mW Technology: Silicon Carbide (SiC)

Dual 1200V CoolSiC Module FF23MR12W1M1B11BOMA1 Automotive IGBT Modules 50A 20mW​


Product Description Of FF23MR12W1M1B11BOMA1

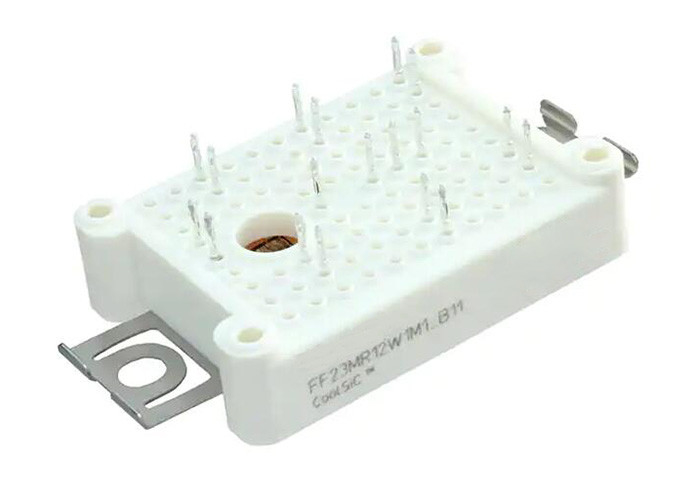

FF23MR12W1M1B11BOMA1 Dual 1200V/23mΩ half bridge Module using CoolSiC ™ MOSFET, NTC temperature detection, and PressFIT crimping technology.


​Specification Of FF23MR12W1M1B11BOMA1

Part Number FF23MR12W1M1B11BOMA1
Rds On (Max) @ Id, Vgs 23mOhm @ 50A, 15V
Power - Max
20mW
Current - Continuous Drain (Id) @ 25°C
50A
Input Capacitance (Ciss) (Max) @ Vds
3950pF @ 800V
Vgs(th) (Max) @ Id
5.55V @ 20mA
Gate Charge (Qg) (Max) @ Vgs
125nC @ 15V
Drain to Source Voltage (Vdss)
1200V (1.2kV)
Operating Temperature
-40°C ~ 150°C (TJ)



Features Of​ FF23MR12W1M1B11BOMA1

  • High current density
  • Increase power density
  • Extremely efficient, with lower cooling requirements
  • Extremely low switching and conduction losses in similar products



Other Electronic Components In Stock

Part Number Package
SI9712DY SOP16
SI9706DY SOP8
SI9111DY SOP14
SI9119DY SOP16
SI9100DJ02 DIP
SI9105DJ02 DIP



FAQ
Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity
