Mosfet Array F423MR12W1M1PB11BPSA1 Automotive IGBT Modules 1200V 4N-Channel

Mosfet Array F423MR12W1M1PB11BPSA1 Automotive IGBT Modules 1200V 4N-Channel

Mosfet Array F423MR12W1M1PB11BPSA1 Automotive IGBT Modules 1200V 4N-Channel

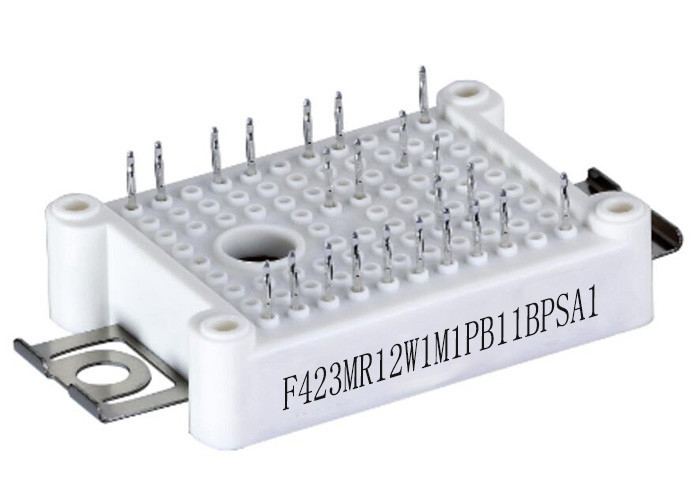

Large Image : Mosfet Array F423MR12W1M1PB11BPSA1 Automotive IGBT Modules 1200V 4N-Channel

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	F423MR12W1M1PB11BPSA1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Mosfet Array F423MR12W1M1PB11BPSA1 Automotive IGBT Modules 1200V 4N-Channel

Description

Part Number:	F423MR12W1M1PB11BPSA1	Current - Continuous Drain (Id) @ 25°C:	50A
IDRM:	100A	Input Capacitance (Ciss) (Max) @ Vds:	3.68nF @ 800V
Technology:	MOSFET (Metal Oxide)	ID Nom:	50A

Mosfet Array F423MR12W1M1PB11BPSA1 Automotive IGBT Modules 1200V 4N-Channel

Product Description Of F423MR12W1M1PB11BPSA1

F423MR12W1M1PB11BPSA1 is Mosfet Array, 1200V 50A, Chassis Mount, 4 N-Channel MOSFET Module.

Specification Of F423MR12W1M1PB11BPSA1

Part Number	F423MR12W1M1PB11BPSA1
Vgs(th) (Max) @ Id	5.5V @ 20mA
Gate Charge (Qg) (Max) @ Vgs	124nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	3.68nF @ 800V
Rds On (Max) @ Id, Vgs	22.5mOhm @ 50A, 15V

Applications Of FF3MR12KM1HOSA1

High Frequency Switching application
DC/DC converter
Welding

Other Electronic Components In Stock

Part Number	Package
BCM20736A1KML2G	QFN
SSL4120T	SOP
STGIPS10K60A	SDIP-25L
TMP86FH46ANG	DIP
BCM7119KKFEBA01G	BGA
XC2S150-5PQ208C	QFP

FAQ
Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity
