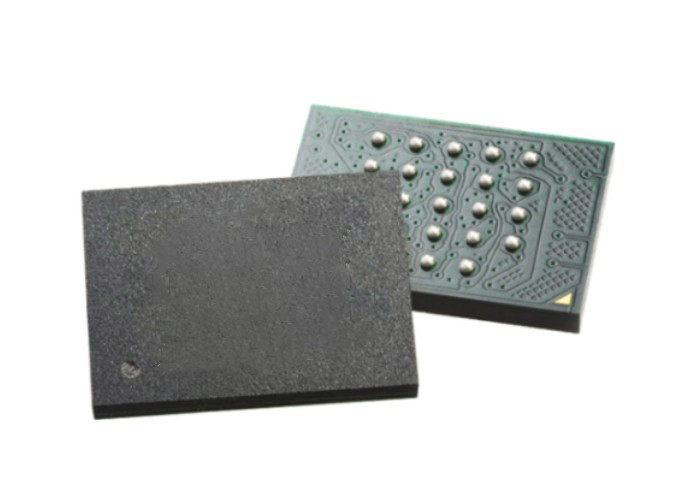

S80KS5122GABHA023 Integrated Circuit Chip 512Mb DRAM Memory With HYPERBUS Interface

Integrated Circuit Chip S80KS5122GABHA023 512Mb DRAM Memory With HYPERBUS Interface

Product Description Of S80KS5122GABHA023

S80KS5122GABHA023 HYPERRAM™ 2.0 Memory is a high-speed, low-pin-count, low-power self-refresh Dynamic RAM (DRAM) for high-performance embedded systems requiring expansion memory for scratchpad or buffering purposes.

Specification Of S80KS5122GABHA023

Features Of S80KS5122GABHA023

• 200 MHz maximum clock rate
• DDR - transfers data on both edges of the clock
• Data throughput up to 400 MBps (3,200 Mbps)
• Configurable burst characteristics
• Linear burst
• Wrapped burst lengths:64 bytes (32 clocks)
• Hybrid option - one wrapped burst followed by linear burst on 256 Mb.
• Linear Burst across die boundary is not supported.
• Configurable output drive strength
• Power modes
• Hybrid sleep mode
• Deep power down
• Array refresh
• Partial memory array (1/8, 1/4, 1/2, and so on)
• Package: 24-ball FBGA

Applications Of S80KS5122GABHA023

• Automotive instrument clusters, infotainment, and telematics systems
• Industrial machine vision
• Industrial and consumer HMI display panels
• Consumer wearable devices
• Communication modules

Logic Block Diagram Of S80KS5122GABHA023
