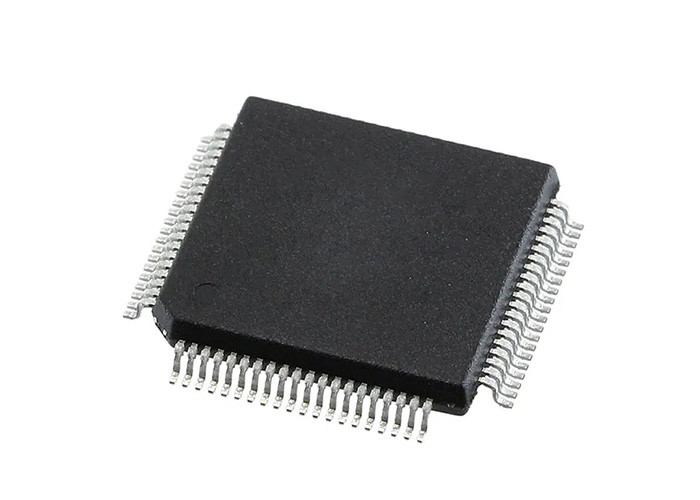

Integrated 5-Port KSZ8765CLXCC Ethernet Switch Chip 80LQFP Integrated Circuit Chip

 Integrated 5-Port KSZ8765CLXCC Ethernet Switch Chip 80LQFP Integrated Circuit Chip​

Product Description Of KSZ8765CLXCC

KSZ8765CLXCC is a highly integrated, Layer 2-managed, five-port switch with numerous features designed to reduce overall system cost.
KSZ8765CLXCC is intended for cost-sensitive applications requiring four 10/100Mbps copper ports and one 10/100/1000Mbps Gigabit uplink port.
KSZ8765CLXCC incorporates a small package outline, the lowest power consumption with internal biasing, and on-chip termination.

Specification Of KSZ8765CLXCC

Features Of KSZ8765CLXCC

• 2kb jumbo packet support
• Supports reduced media independent interface (RMII) with 50MHz reference clock output
• 64kb frame buffer RAM
• High speed (4-wire, up to 50MHz) interface (SPI) to access all internal registers
• Voltages: Using external LDO power supplies.
• Analog VDDAT 3.3V
• VDDIO support 3.3V, 2.5V, and 1.8V
• Low 1.2V voltage for analog and digital core power
• Commercial temperature range: 0°C to +70°C
• Industrial temperature range: –40oC to +85oC
• Package available in an 80-pin lead free (RoHS) LQFP form factor
• Supports HBM ESD rating of 5kV
• 0.065µm CMOS technology for lower power consumption
