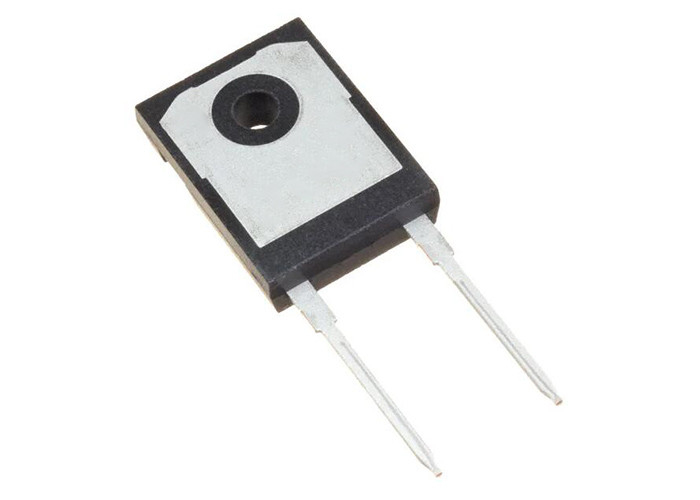

1200V Diode MSC050SDA120B Zero Recovery Silicon Carbide Schottky Diode TO-247-3

1200V Diode MSC050SDA120B Zero Recovery Silicon Carbide Schottky Diode TO-247-3
1200V Diode MSC050SDA120B Zero Recovery Silicon Carbide Schottky Diode TO-247-3

Large Image :  1200V Diode MSC050SDA120B Zero Recovery Silicon Carbide Schottky Diode TO-247-3

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MSC050SDA120B
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-247-3
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

1200V Diode MSC050SDA120B Zero Recovery Silicon Carbide Schottky Diode TO-247-3

Description
Part Number: MSC050SDA120B Forward Voltage(IF = 50 A, TJ = 25 °C) - Max: 1.8V
Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 50 A Capacitance @ Vr, F: 246pF @ 400V, 1MHz
Reverse Recovery Time (trr): 0 Ns Reverse Leakage Current(VR = 1200 V, TJ = 25 °C ) - Max: 200μA

1200V Diode MSC050SDA120B Zero Recovery Silicon Carbide Schottky Diode TO-247-3​



Product Description Of MSC050SDA120B

MSC050SDA120B is Zero Recovery Silicon Carbide Schottky Diode, it is a 1200 V, 50 A SiC SBD in a two-lead TO-247 package.



Specification Of MSC050SDA120B

Part Number: MSC050SDA120B Current - Average Rectified (Io): 109A
Package / Case: TO-247-3 Power Dissipation(TC = 25 °C): 429 W
Mounting Type: Through Hole Voltage - DC Reverse (Vr) (Max): 1200 V


Applications Of​ MSC050SDA120B

  • H/EV powertrain and EV charger
  • Power supply and distribution
  • PV inverter, converter, and industrial motor drives



Other Supply Product Types

Part Number Package
M58LR256KB70ZQ5Z BGA
SCA3000-E01 QFN
LIS3LV02DLTR LGA16
BC358239A BGA
X9C503SIZT1 SOP8
X9C103SZT1 SOP-8



FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
