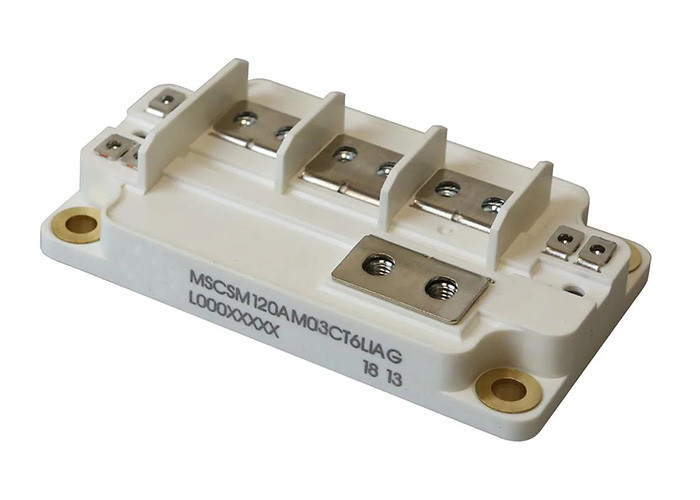

Automotive IGBT Modules MSCSM120AM03CT6LIAG Mosfet Array 1200V 805A Transistors

Large Image : Automotive IGBT Modules MSCSM120AM03CT6LIAG Mosfet Array 1200V 805A Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM120AM03CT6LIAG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Automotive IGBT Modules MSCSM120AM03CT6LIAG Mosfet Array 1200V 805A Transistors

Description

Part Number:	MSCSM120AM03CT6LIAG	Operating Temperature:	-40°C ~ 175°C (TJ)
Power - Max:	3.215kW (Tc)	Vf - Forward Voltage:	1.5 V
Vr - Reverse Voltage:	1.2 KV	Vgs - Gate-Source Voltage:	- 10 V, + 25 V

Automotive IGBT Modules MSCSM120AM03CT6LIAG Mosfet Array 1200V 805A Transistors

Product Description Of MSCSM120AM03CT6LIAG

MSCSM120AM03CT6LIAG features high blocking voltage, very low stray inductance, ultra-low weight, and low junction to case thermal resistance.

Specification Of MSCSM120AM03CT6LIAG

Part Number	MSCSM120AM03CT6LIAG
Input Capacitance (Ciss) (Max) @ Vds	30200pF @ 1kV
Power - Max	3.215kW (Tc)
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount

Pinout Location Of MSCSM120AM03CT6LIAG

Automotive IGBT Modules MSCSM120AM03CT6LIAG Mosfet Array 1200V 805A Transistors 0

Other Supply Product Types

Part Number	Package
HMC307QS16G	SSOP16
CY8C22545-24AXI	TQFP44
BLF6G38LS-100	SMD
BLF6G38-10G	SMD
SX1301IMLTRC	QFN64
AD8450ASTZ	QFP80

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
