200A Phase Leg SiC Diodes Power Module MSCDC200A120D1PAG Automotive IGBT Modules

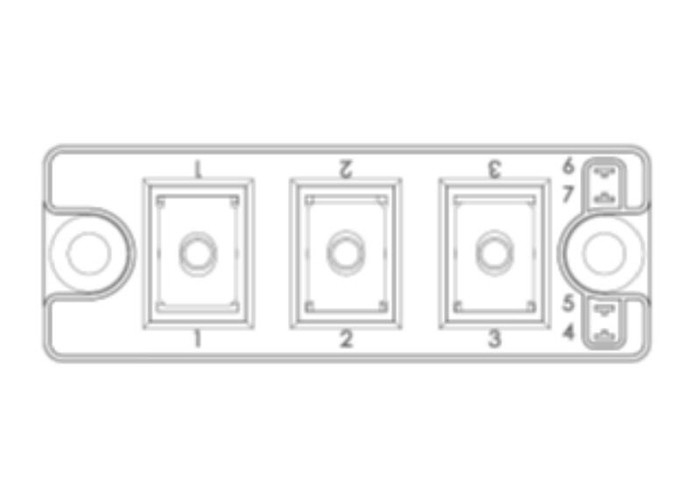

Large Image : 200A Phase Leg SiC Diodes Power Module MSCDC200A120D1PAG Automotive IGBT Modules

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCDC200A120D1PAG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

200A Phase Leg SiC Diodes Power Module MSCDC200A120D1PAG Automotive IGBT Modules

Description

Part Number:	MSCDC200A120D1PAG	Voltage - Forward (Vf) (Max) @ If:	1.8 V @ 200 A
DC Forward Current TC = 95 °C:	200A	Junction-to-case Thermal Resistance:	0.16 °C/W
Supplier Device Package:	D1P	Mounting Type:	Chassis Mount

200A Phase Leg SiC Diodes Power Module MSCDC200A120D1PAG Automotive IGBT Modules

Product Description Of MSCDC200A120D1PAG

MSCDC200A120D1PAG is Phase Leg SiC Diodes Power Module, 1200V 200A, 1 Pair Series Connection, Diode Array Chassis Mount Module.

Specification Of MSCDC200A120D1PAG

Part Number:	MSCDC200A120D1PAG	Package / Case:	Module
Total Capacitive Charge VR = 600 V(Typ):	896nC	Diode Configuration:	1 Pair Series Connection
Repetitive Peak Reverse Voltage:	1200V	Product:	Diode Power Modules

Features Of MSCDC200A120D1PAG

Stable temperature behavior
Zero reverse recovery
Low losses
Low junction-to-case thermal resistance
M5 power connectors
