Automotive IGBT Modules MSCDC150A170D1PAG 150A Phase Leg SiC Diodes Power Module

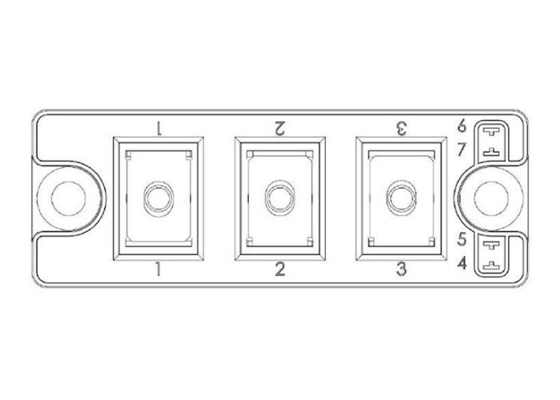

Large Image : Automotive IGBT Modules MSCDC150A170D1PAG 150A Phase Leg SiC Diodes Power Module

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCDC150A170D1PAG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Automotive IGBT Modules MSCDC150A170D1PAG 150A Phase Leg SiC Diodes Power Module

Description

Part Number:	MSCDC150A170D1PAG	Supplier Device Package:	D1P
Product:	Diode Power Module	Type:	Phase Leg
Reverse Recovery Time (trr):	0 Ns	Voltage - Forward (Vf) (Max) @ If:	1.8 V @ 150 A

Automotive IGBT Modules MSCDC150A170D1PAG 150A Phase Leg SiC Diodes Power Module

Product Description Of MSCDC150A170D1PAG

MSCDC150A170D1PAG is Diode Power Modules - Phase Leg SiC Diodes Power Module, 1 Pair Series Connection 1700 V 150A, Chassis Mount.

Specification Of MSCDC150A170D1PAG

Part Number:	MSCDC150A170D1PAG
Technology:	SiC
Vf - Forward voltage:	1.5 V at 150 A
Vr - Reverse voltage:	700 V
Mounting Style:	Screw Mount
Package / Case:	D1P
Minimum operating temperature:	- 40 C
Maximum operating temperature:	+ 125 C

Applications Of MSCDC150A170D1PAG

Switched mode power supplies
Uninterruptible power supplies

Other Supply Product Types

Part Number	Package
NGTB40N120FL2WG	TO-247
SKY77594-31	QFN
INA139QPWRQ1	TSSOP8
TCLT1003	SOP4
ATTINY5-TSHR	SOT23-6
ATTINY1634-MN	QFN-20

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
