Automotive IGBT Modules MSCSM70VM19C3AG Mosfet Array Chassis Mount Transistors

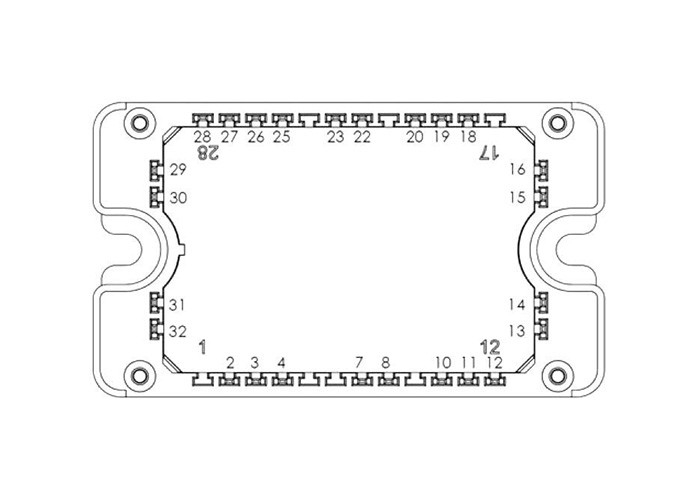

Large Image : Automotive IGBT Modules MSCSM70VM19C3AG Mosfet Array Chassis Mount Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM70VM19C3AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Automotive IGBT Modules MSCSM70VM19C3AG Mosfet Array Chassis Mount Transistors

Description

Part Number:	MSCSM70VM19C3AG	Mounting Style:	Screw Mounts
Vf - Forward Voltage:	1.5 V At 50 A	Power Dissipation:	365 W
Transistor Polarity:	N-Channel	Vgs Th:	1.9 V

Automotive IGBT Modules MSCSM70VM19C3AG Mosfet Array Chassis Mount Transistors

Product Description Of MSCSM70VM19C3AG

MSCSM70VM19C3AG available standard module product line spans a wide selection of circuit topologies, semiconductors including Silicon Carbide, voltage and current ratings, and packages. Unique requirements can be met with application-specific power modules (ASPM®).

Specification Of MSCSM70VM19C3AG

Part Number	MSCSM70VM19C3AG
Power - Max	365W (Tc)
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module

Features Of MSCSM70VM19C3AG

M4 and M5 power connectors
M2.5 signals connectors
AlN substrate for improved thermal performance

Other Supply Product Types

Part Number	Package
IPN50R3K0CE	SOT-223
IPU50R2K0CE	TO-251
IPS60R2K1CE	TO-251
IPS70R2K0CE	TO-251
EP4CE15M8I7N	BGA-164
SSL1523P	DIP-8

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
