1700V 100A Silicon Carbide Schottky Diode MSCDC100A170D1PAG Automotive IGBT Modules

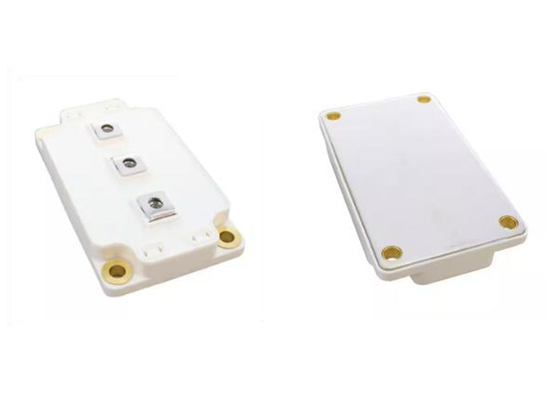

Large Image : 1700V 100A Silicon Carbide Schottky Diode MSCDC100A170D1PAG Automotive IGBT Modules

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCDC100A170D1PAG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

1700V 100A Silicon Carbide Schottky Diode MSCDC100A170D1PAG Automotive IGBT Modules

Description

Part Number:	MSCDC100A170D1PAG	Power Connectors:	M5 Power Connectors
Voltage:	1700V	Current:	100A
Package / Case:	Module	Package Weight:	160g

1700V 100A Silicon Carbide Schottky Diode MSCDC100A170D1PAG Automotive IGBT Modules

Product Description Of MSCDC100A170D1PAG

MSCDC100A170D1PAG is Phase Leg SiC Diodes Power Module, zero reverse recovery and zero forward recovery, Aluminum nitride (AlN) substrate for improved thermal performance.

Specification Of MSCDC100A170D1PAG

Part Number:	MSCDC100A170D1PAG	Speed:	No Recovery Time > 500mA (Io
Voltage - Forward (Vf) (Max) @ If:	1.8 V @ 100 A	Current - Average Rectified (Io) (Per Diode):	100A
Voltage - DC Reverse (Vr) (Max):	1700 V	Technology:	SiC (Silicon Carbide) Schottky

Applications Of MSCDC100A170D1PAG

Welding converters
Motor contro
