MSCSM120TAM11CTPAG Mosfet Array 1200V 251A Chassis Mount Transistors Module

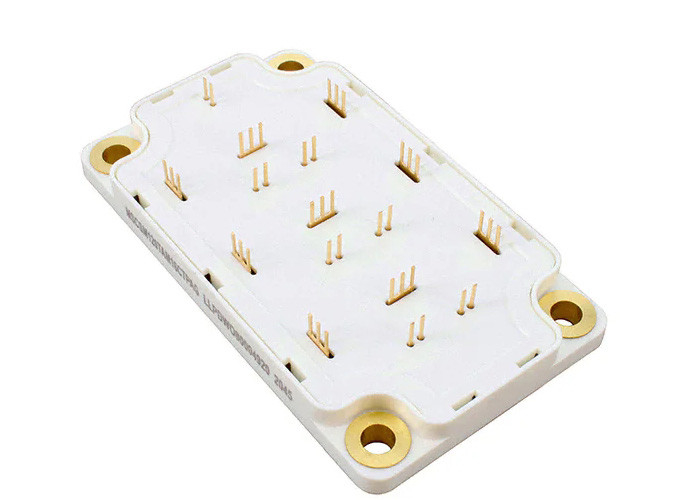

Large Image : MSCSM120TAM11CTPAG Mosfet Array 1200V 251A Chassis Mount Transistors Module

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM120TAM11CTPAG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

MSCSM120TAM11CTPAG Mosfet Array 1200V 251A Chassis Mount Transistors Module

Description

Part Number:	MSCSM120TAM11CTPAG	Pulsed Drain Current:	1600A
Gate–source Voltage:	25V	Configuration:	Triple
Drain–source ON Resistance:	3.1mΩ	Power Dissipation:	3215W

MSCSM120TAM11CTPAG Mosfet Array 1200V 251A Chassis Mount Transistors Module

Product Description Of MSCSM120TAM11CTPAG

MSCSM120TAM11CTPAG modules operate at 1.2kV reverse voltage (VR), -10V to 25V gate-source voltage range (VGS), 310W/560W power dissipation (PD), and 79A/150A continuous drain current (ID).

Specification Of MSCSM120TAM11CTPAG

Part Number	MSCSM120TAM11CTPAG
Fall Time:	25 ns
Id - Continuous Drain Current:	251 A
Pd - Power Dissipation:	1042 W
Product Type:	Discrete Semiconductor Modules
Rds On - Drain-Source Resistance:	10.4 mOhms

Benefits Of MSCSM120TAM11CTPAG

High efficiency converter
Outstanding performance at high frequency operation

Other Supply Product Types

Part Number	Package
UBA2025T	SOP16
STTH5R06D	TO-220AC
AUIRF1404Z	TO-263
SN74LVC16244AZQLR	BGA-54
BQ24193HRGER	QFN
LNBH221PD	HSSOP36

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
