Automotive IGBT Modules MSCSM120TAM16CTPAG 728W Discrete Semiconductor Modules

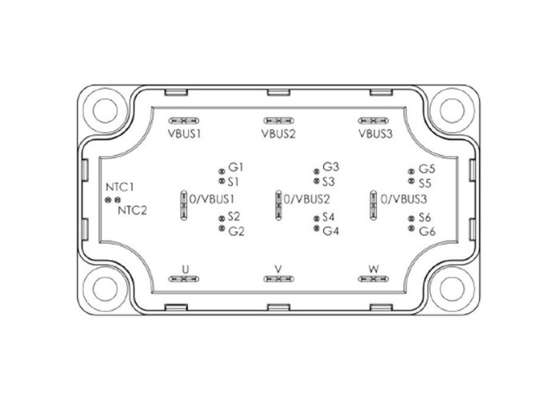

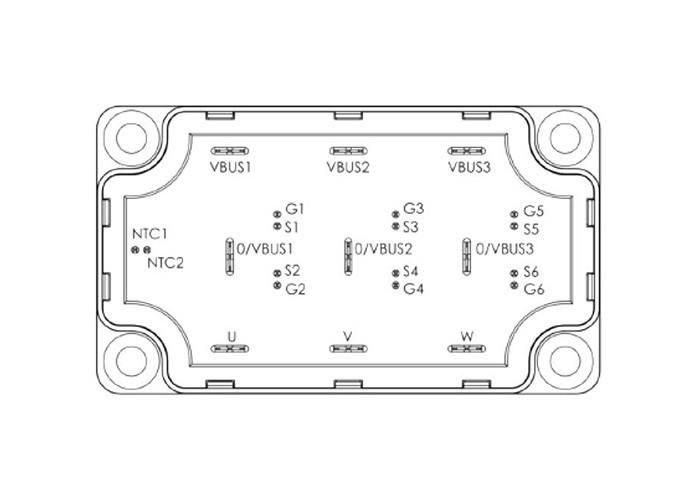

Large Image : Automotive IGBT Modules MSCSM120TAM16CTPAG 728W Discrete Semiconductor Modules

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM120TAM16CTPAG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Automotive IGBT Modules MSCSM120TAM16CTPAG 728W Discrete Semiconductor Modules

Description

Part Number:	MSCSM120TAM16CTPAG	Gate–source Leakage Current:	1μA
Gate Threshold Voltage:	2.8V	Input Capacitance:	30.2nF
Total Gate Charge:	2320nC	VBus:	800 V

Automotive IGBT Modules MSCSM120TAM16CTPAG 728W Discrete Semiconductor Modules

Product Description Of MSCSM120TAM16CTPAG

MSCSM120TAM16CTPAG used in applications such as high-reliability power systems, high-efficiency AC/DC and DC/AC converters, motor control, and AC switches.

Specification Of MSCSM120TAM16CTPAG

Part Number:	MSCSM120TAM16CTPAG	Pulsed Drain Current:	1600A
Gate–Source Voltage:	25V	Configuration:	Triple
Drain–Source ON Resistance:	3.1mΩ	Power Dissipation:	3215W

Benefits Of MSCSM120TAM16CTPAG

Direct mounting to heatsink (isolated package)
Low junction-to-case thermal resistance
Low profile
RoHS compliant

Other Supply Product Types

Part Number	Package
ESP6000	BGA
5646442-1	SMD
EP3C40F780C8N	BGA
5646446-1	SMD
MT49H32M18CBM-18	BGA144
EP3C10E144I7N	TQFP144

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
