4N-Channel Silicon Carbide MOSFETs MSCSM70TLM10C3AG Automotive IGBT Modules 700V

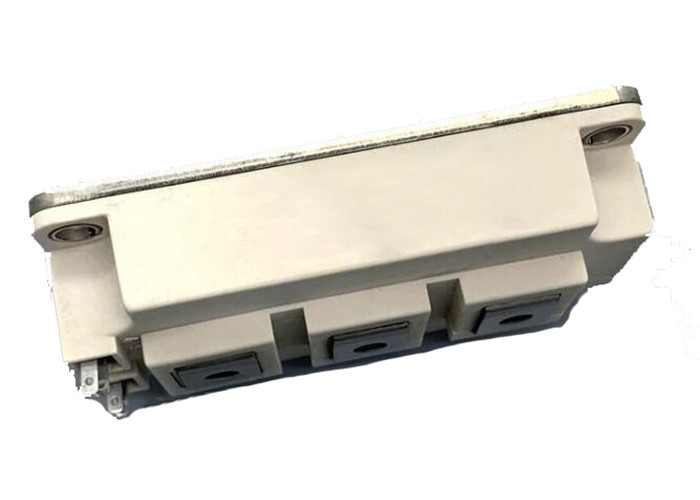

Large Image : 4N-Channel Silicon Carbide MOSFETs MSCSM70TLM10C3AG Automotive IGBT Modules 700V

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM70TLM10C3AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

4N-Channel Silicon Carbide MOSFETs MSCSM70TLM10C3AG Automotive IGBT Modules 700V

Description

Part Number:	MSCSM70TLM10C3AG	Gate Charge (Qg) (Max) @ Vgs:	430nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds:	9000pF @ 700V	Power - Max:	690W (Tc)
Operating Temperature:	-40°C ~ 175°C (TJ)	Mounting Type:	Through Hole

4N-Channel Silicon Carbide MOSFETs MSCSM70TLM10C3AG Automotive IGBT Modules 700V

Product Description Of MSCSM70TLM10C3AG

MSCSM70TLM10C3AG is 4N-Channel Silicon Carbide MOSFETs Module, 700V 241A (Tc), Through Hole Module.

Specification Of MSCSM70TLM10C3AG

Part Number	MSCSM70TLM10C3AG
Technology	Silicon Carbide (SiC)
Configuration	4 N-Channel
Drain to Source Voltage (Vdss)	700V
Current - Continuous Drain (Id) @ 25°C	241A (Tc)
Rds On (Max) @ Id, Vgs	9.5mOhm @ 80A, 20V

Features Of MSCSM70TLM10C3AG

Current - Continuous Drain (Id) @ 25°C: 241A (Tc)
Rds On (Max) @ Id, Vgs: 9.5mOhm @ 80A, 20V
Vgs(th) (Max) @ Id: 2.4V @ 8mA (Typ)

Other Supply Product Types

Part Number	Package
HMC311ST89ETR	SOT89
NTGS3446T1G	SOT23-6
TDA7419	SOP28
BA6287F	SOP-8
T113AI	LQFP128
LM96080CIMTX	TSSOP24

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
