Automotive IGBT Modules MSCSM120AM11CT3AG 1.2kV 254A 1.067kW MOSFETs Transistors

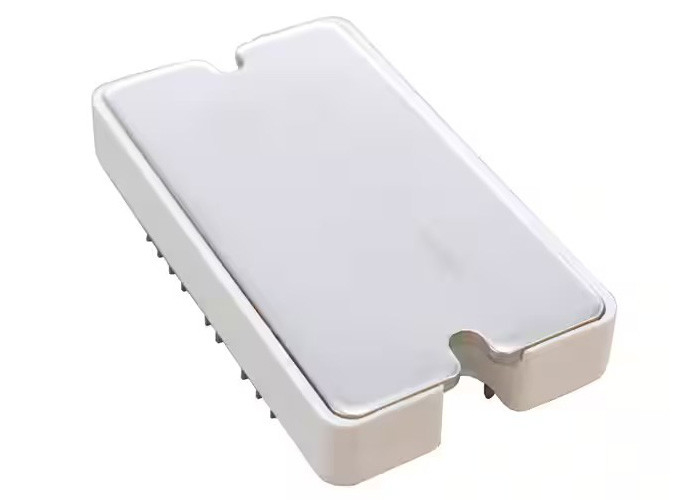

Large Image : Automotive IGBT Modules MSCSM120AM11CT3AG 1.2kV 254A 1.067kW MOSFETs Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM120AM11CT3AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Automotive IGBT Modules MSCSM120AM11CT3AG 1.2kV 254A 1.067kW MOSFETs Transistors

Description

Part Number:	MSCSM120AM11CT3AG	Reverse Recovery Time:	90ns
Junction-to-case Thermal Resistance:	0.126°C/W	Package Weight:	320g
Rds On - Drain-Source Resistance:	10.4 MOhms	Turn-On Delay Time:	30 Ns

Automotive IGBT Modules MSCSM120AM11CT3AG 1.2kV 254A 1.067kW MOSFETs Transistors

Product Description Of MSCSM120AM11CT3AG

MSCSM120AM11CT3AG Power Modules are high-efficiency converters that feature SP3F substrate with thick copper for improved thermal performance. MSCSM120AM11CT3AG offer a low profile, direct mounting to the heatsink, an internal thermistor for temperature monitoring, and an extended temperature range.

Specification Of MSCSM120AM11CT3AG

Part Number:	MSCSM120AM11CT3AG	Gate–Source Leakage Current:	1μA
Gate Threshold Voltage:	2.8V	Input Capacitance:	30.2nF
Total Gate Charge:	2320nC	VBus:	800 V

Applications Of MSCSM120AM11CT3AG

Welding converters
Switched mode power supplies

Other Supply Product Types

Part Number	Package
XC6SLX25-2CSG324I	BGA324
IPU80R1K0CE	TO-251
IPU50R950CE	TO251
MCP3905A-I/SS	SSOP-24
PL3120-E4T10	TSSOP38
S34ML01G100TFI000	TSOP48

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
