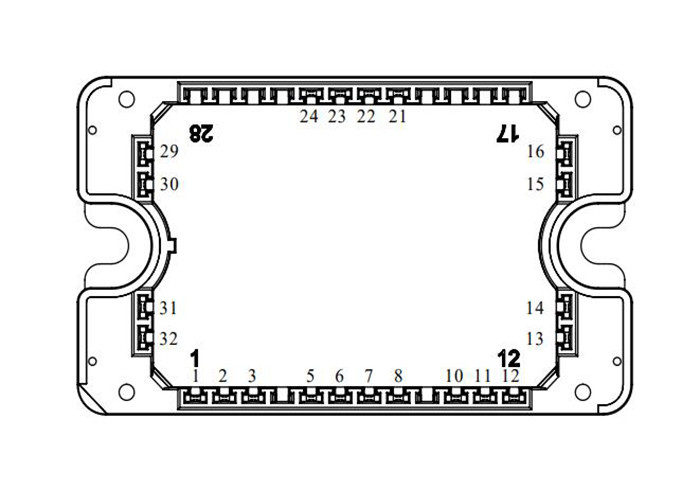

Three Level Inverter MSCSM170TLM23C3AG SiC MOSFET Power Module 1700V 4N-Channel

Large Image : Three Level Inverter MSCSM170TLM23C3AG SiC MOSFET Power Module 1700V 4N-Channel

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM170TLM23C3AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Three Level Inverter MSCSM170TLM23C3AG SiC MOSFET Power Module 1700V 4N-Channel

Description

Part Number:	MSCSM170TLM23C3AG	Supplier Device Package:	SP3F
Package / Case:	Module	Configuration:	4 N-Channel (Three Level Inverter)
Technology:	Silicon Carbide (SiC)	Mounting Type:	Chassis Mount

Three Level Inverter MSCSM170TLM23C3AG SiC MOSFET Power Module 1700V 4N-Channel

Product Description Of MSCSM170TLM23C3AG

MSCSM170TLM23C3AG is a three level inverter 1700V/124A silicon carbide (SiC) MOSFET power module.

Specification Of MSCSM170TLM23C3AG

Part Number	MSCSM170TLM23C3AG
Drain to Source Voltage (Vdss)	1700V (1.7kV)
Current - Continuous Drain (Id) @ 25°C	124A (Tc)
Rds On (Max) @ Id, Vgs	22.5mOhm @ 60A, 20V
Vgs(th) (Max) @ Id	3.2V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	356nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	6600pF @ 1000V
Power - Max	602W (Tc)
Operating Temperature	-40°C ~ 175°C (TJ)

Features Of MSCSM170TLM23C3AG

Temperature independent switching behavior
Low stray inductance
Kelvin source for easy drive
High level of integration
Outstanding performance at high frequency operation
