1200V Automotive IGBT Modules MSC130SM120JCU2 N-Channel Silicon Carbide SOT-227-4

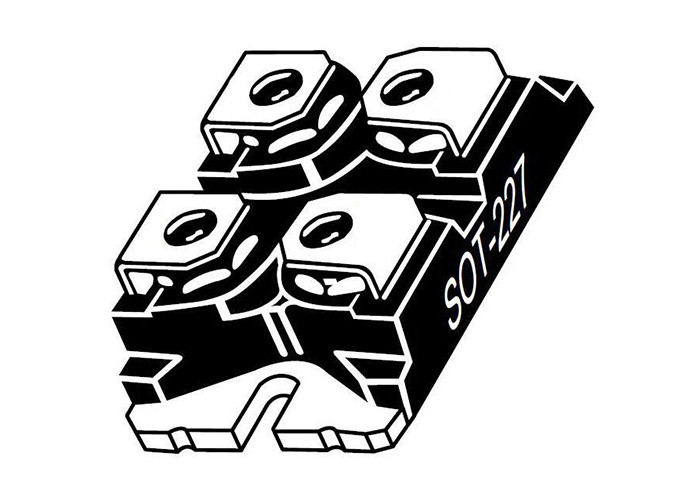

Large Image : 1200V Automotive IGBT Modules MSC130SM120JCU2 N-Channel Silicon Carbide SOT-227-4

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSC130SM120JCU2

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOT-227-4
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

1200V Automotive IGBT Modules MSC130SM120JCU2 N-Channel Silicon Carbide SOT-227-4

Description

Part Number:	MSC130SM120JCU2	Type:	Boost Chopper
Vgs - Gate-Source Voltage:	- 10 V, + 25 V	Id - Continuous Drain Current:	173 A
Pd - Power Dissipation:	745 W	Product:	IGBT Silicon Carbide Modules

1200V Automotive IGBT Modules MSC130SM120JCU2 N-Channel Silicon Carbide SOT-227-4

Product Description Of MSC130SM120JCU2

MSC130SM120JCU2 is a 1200V, 173A full Silicon Carbide power module.

Specification Of MSC130SM120JCU2

Part Number	MSC130SM120JCU2
Vgs(th) (Max) @ Id	2.8V @ 2mA
Gate Charge (Qg) (Max) @ Vgs	464 nC @ 20 V
Vgs (Max)	+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds	6040 pF @ 1000 V
Power Dissipation (Max)	745W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SOT-227 (ISOTOP®)
Package / Case	SOT-227-4, miniBLOC

Features Of MSC130SM120JCU2

Silicon Carbide (SiC) Power MOSFET
High efficiency converter
Very low stray inductance
Stable temperature behavior
Low junction-to-case thermal resistance
Outstanding performance at high frequency operation
