Automotive IGBT Modules MSC100SM70JCU2 Boost Chopper SiC MOSFET Power Module SOT-227-4

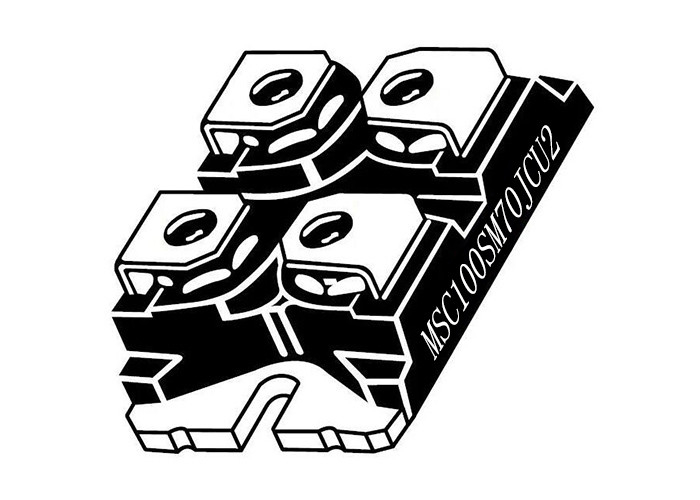

Large Image : Automotive IGBT Modules MSC100SM70JCU2 Boost Chopper SiC MOSFET Power Module SOT-227-4

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSC100SM70JCU2

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOT-227-4
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Automotive IGBT Modules MSC100SM70JCU2 Boost Chopper SiC MOSFET Power Module SOT-227-4

Description

Part Number:	MSC100SM70JCU2	FET Type:	N-Channel
Rds On (Max) @ Id, Vgs:	19mOhm @ 40A, 20V	Input Capacitance (Ciss) (Max) @ Vds:	4500 PF @ 700 V
Operating Temperature:	-55°C ~ 150°C (TJ)	Package / Case:	SOT-227-4, MiniBLOC

Automotive IGBT Modules MSC100SM70JCU2 Boost Chopper SiC MOSFET Power Module SOT-227-4

Product Description Of MSC100SM70JCU2

MSC100SM70JCU2 is N-Channel 700 V 124A (Tc) Boost Chopper SiC MOSFET Power Module.

Specification Of MSC100SM70JCU2

Part Number	MSC100SM70JCU2
Product:	IGBT Silicon Carbide Modules
Type:	Boost Chopper
Technology:	SiC
Vf - Forward Voltage:	1.5 V
Vr - Reverse Voltage:	1.2 kV
Vgs - Gate-Source Voltage:	- 10 V, + 25 V
Mounting Style:	Screw Mounts
Package / Case:	SOT-227

Applications Of MSC100SM70JCU2

Brake switch
Power factor correction
AC and DC motor control
Switched mode power supplies
