MSCSM70AM10CT3AG Discrete Semiconductor Modules 700V 241A 690W Chassis Mount SP3F

Large Image : MSCSM70AM10CT3AG Discrete Semiconductor Modules 700V 241A 690W Chassis Mount SP3F

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM70AM10CT3AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

MSCSM70AM10CT3AG Discrete Semiconductor Modules 700V 241A 690W Chassis Mount SP3F

Description

Part Number:	MSCSM70AM10CT3AG	Product Category:	Discrete Semiconductor Modules
Vf - Forward Voltage:	1.5 V At 100 A	Vr - Reverse Voltage:	700 V
Vgs - Gate-Source Voltage:	- 10 V, 25 V	Package / Case:	SP3F

MSCSM70AM10CT3AG Discrete Semiconductor Modules 700V 241A 690W Chassis Mount SP3F

Product Description Of MSCSM70AM10CT3AG

The MSCSM70AM10CT3AG device is a phase leg 700 V/241 A full silicon carbide (SiC) power module.

Product Attributes Of MSCSM70AM10CT3AG

Part Number	MSCSM70AM10CT3AG
Technology	Silicon Carbide (SiC)
Configuration	2 N Channel (Phase Leg)
Current - Continuous Drain (Id) @ 25°C	241A (Tc)
Rds On (Max) @ Id, Vgs	9.5mOhm @ 80A, 20V
Vgs(th) (Max) @ Id	2.4V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	430nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	9000pF @ 700V
Power - Max	690W (Tc)

Features Of MSCSM70AM10CT3AG

Very low stray inductance
Kelvin source for easy drive
Internal thermistor for temperature monitoring
Aluminum nitride (AlN) substrate for improved thermal performance

Applications Of MSCSM70AM10CT3AG

Uninterruptible power supplies
Switched mode power supplies
EV motor and traction drive
Welding converters

Pinout Location Of MSCSM70AM10CT3AG

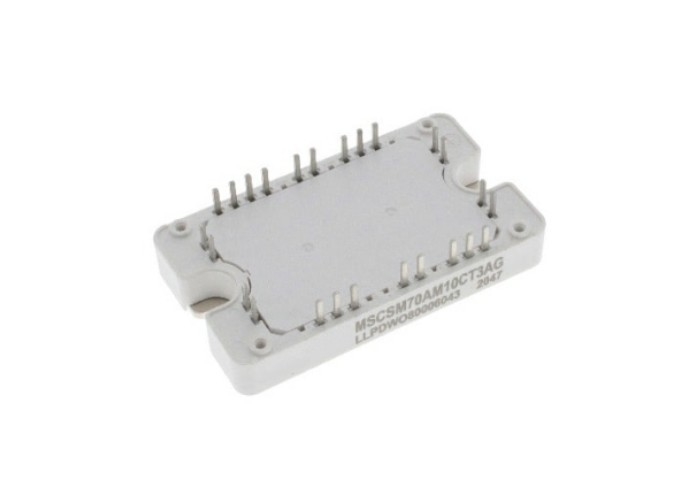

MSCSM70AM10CT3AG Discrete Semiconductor Modules 700V 241A 690W Chassis Mount SP3F 0
