Automotive IGBT Modules MSCSM120DAM11CT3AG SiC MOSFET Power Module 4000Vrms

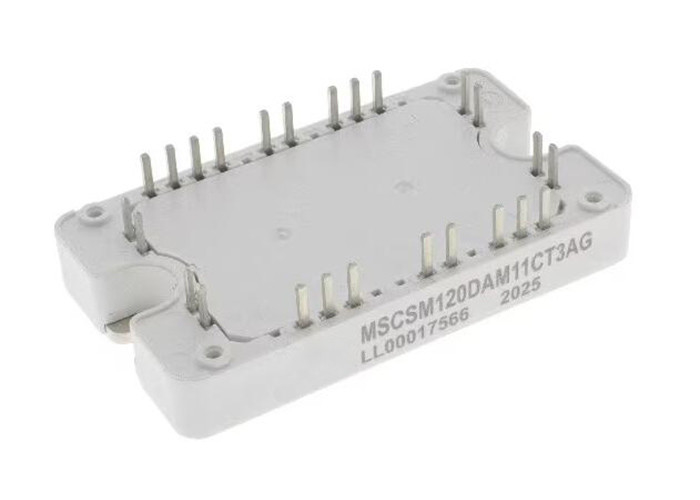

Large Image : Automotive IGBT Modules MSCSM120DAM11CT3AG SiC MOSFET Power Module 4000Vrms

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM120DAM11CT3AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Automotive IGBT Modules MSCSM120DAM11CT3AG SiC MOSFET Power Module 4000Vrms

Description

Part Number:	MSCSM120DAM11CT3AG	Vf - Forward Voltage:	1.5 V At 180 A
Fall Time:	25 Ns	Pd - Power Dissipation:	1067 W
Rds On - Drain-Source Resistance:	10.4 MOhms	Vds - Drain-Source Breakdown Voltage:	1.2 KV

Automotive IGBT Modules MSCSM120DAM11CT3AG SiC MOSFET Power Module 4000Vrms

Product Description Of MSCSM120DAM11CT3AG

MSCSM120DAM11CT3AG is a boost chopper 1200 V/254 A full Silicon Carbide (SiC) power module.

Specification Of MSCSM120DAM11CT3AG

Part Number	MSCSM120DAM11CT3AG
Type	MOSFET
Configuration	1 Phase
Current	254 A
Voltage	1.2 kV
Voltage - Isolation	4000Vrms
Mounting Type	Chassis Mount
Package / Case	Module

Features Of MSCSM120DAM11CT3AG

High speed switching
Low RDS(on)
Ultra low loss
Low stray inductance
Kelvin source for easy drive
Internal thermistor for temperature monitoring
