MSCSM170AM23CT1AG Mosfet Array 1.7kV 124A Discrete Semiconductor Transistors

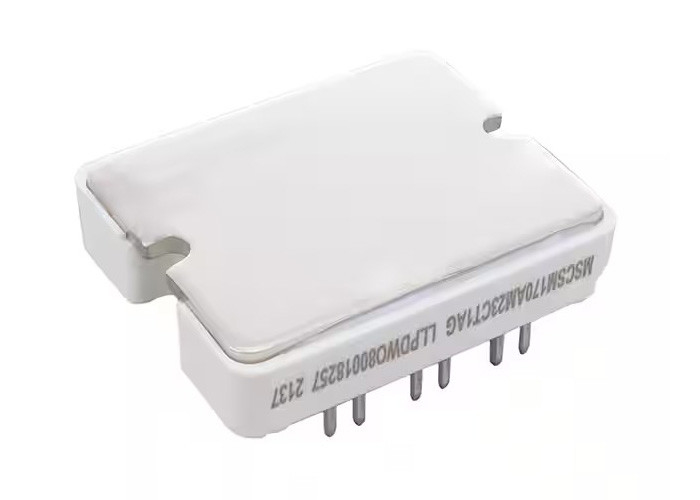

Large Image : MSCSM170AM23CT1AG Mosfet Array 1.7kV 124A Discrete Semiconductor Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM170AM23CT1AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

MSCSM170AM23CT1AG Mosfet Array 1.7kV 124A Discrete Semiconductor Transistors

Description

Part Number:	MSCSM170AM23CT1AG	Configuration:	2 N Channel (Phase Leg)
VGS:	20 V	Gate–Source Leakage Current:	200nA
Turn-on Energy:	2.2mJ	Junction-to-case Thermal Resistance:	0.25°C/W

MSCSM170AM23CT1AG Mosfet Array 1.7kV 124A Discrete Semiconductor Transistors

Product Description Of MSCSM170AM23CT1AG

MSCSM170AM23CT1AG features high blocking voltage, very low stray inductance, ultra-low weight, and low junction to case thermal resistance.

Specification Of MSCSM170AM23CT1AG

Part Number:	MSCSM170AM23CT1AG	Drain-Source ON Resistance:	15 MΩ
Power Dissipation:	862W	Output Capacitance:	450pF
Fall Time:	19ns	Internal Gate Resistance:	1.95Ω

Features Of MSCSM170AM23CT1AG

High blocking voltage
Very low stray inductance

Other Supply Product Types

Part Number	Package
RF5626	QFN
SFH421Z	SMD
LCMXO2-640HC-4TG100I	TQFP100
ADV7182WBCPZ	LFCSP32
IPA60R380P6	TO-220F
BFQ149	SOT89

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
