Automotive IGBT Modules MSCSM170AM45CT1AG 319W Chassis Mount Transistors

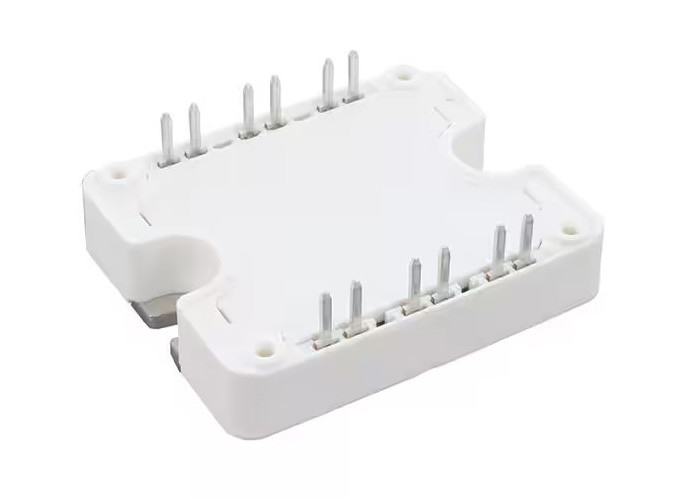

Large Image : Automotive IGBT Modules MSCSM170AM45CT1AG 319W Chassis Mount Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM170AM45CT1AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Automotive IGBT Modules MSCSM170AM45CT1AG 319W Chassis Mount Transistors

Description

Part Number:	MSCSM170AM45CT1AG	Vdss:	1700V
Current - Continuous Drain:	64A (Tc)	Diode Forward Voltage:	3.7V
Reverse Recovery Charge:	1300nC	Total Capacitance:	276pF

Automotive IGBT Modules MSCSM170AM45CT1AG 319W Chassis Mount Transistors

Product Description Of MSCSM170AM45CT1AG

MSCSM170AM45CT1AG Power Modules combine a formidable array of technologies into a single package, optimized for reliability, efficiency, space-saving, and reduced assembly time.

Specification Of MSCSM170AM45CT1AG

Part Number:	MSCSM170AM45CT1AG	Configuration:	2 N Channel (Phase Leg)
VGS:	20 V	Gate–Source Leakage Current:	200nA
Turn-On Energy:	2.2mJ	Junction-To-Case Thermal Resistance:	0.25°C/W

Features Of MSCSM170AM45CT1AG

Extended temperature range:-40°C ~ 175°C (TJ)
High reliability
Reduced size and weight
High-reliability testing and screening options

Other Supply Product Types

Part Number	Package
IXFX64N60P3	TO-247
DSA90C200HB	TO-247
STW45N65M5	TO-247-3
STB18N65M5	TO-263
N25Q064A11EF640F	QFN
CC2564YFVR	BGA

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
