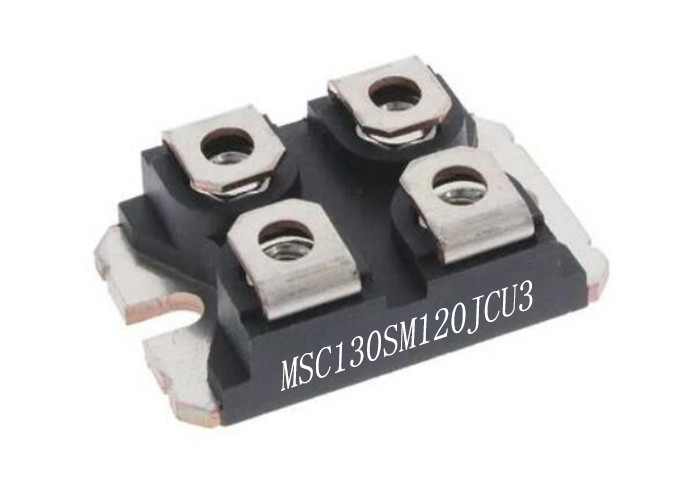

Modules MSC130SM120JCU3 Full Silicon Carbide Power Module 1200V 173A N-Channel

Large Image : Modules MSC130SM120JCU3 Full Silicon Carbide Power Module 1200V 173A N-Channel

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSC130SM120JCU3

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOT-227-4, miniBLOC
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Modules MSC130SM120JCU3 Full Silicon Carbide Power Module 1200V 173A N-Channel

Description

Part Number:	MSC130SM120JCU3	Product:	IGBT Silicon Carbide Modules
Vf - Forward Voltage:	1.5 V	Mounting Style:	Screw Mounts
Input Capacitance (Ciss) (Max) @ Vds:	6040 PF @ 1000 V	Rds On - Drain-Source Resistance:	16 MOhms

Modules MSC130SM120JCU3 Full Silicon Carbide Power Module 1200V 173A N-Channel

Product Description Of MSC130SM120JCU3

MSC130SM120JCU3 is Buck Chopper SiC MOSFET Power Module,1200 V, 173 A full Silicon Carbide power module.

Specification Of MSC130SM120JCU3

Part Number	MSC130SM120JCU3
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	173A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	16mOhm @ 80A, 20V
Vgs(th) (Max) @ Id	2.8V @ 2mA
Gate Charge (Qg) (Max) @ Vgs	464 nC @ 20 V
Vgs (Max)	+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds	6040 pF @ 1000 V
Power Dissipation (Max)	745W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SOT-227 (ISOTOP®)
Package / Case	SOT-227-4, miniBLOC

Electrical Schematic of MSC130SM120JCU3

Modules MSC130SM120JCU3 Full Silicon Carbide Power Module 1200V 173A N-Channel 0

Other Supply Product Types

Part Number	Package
MA46H120	SMD
MIC38300HYHL	QFN28
ADUM2210SRWZ	WSOP-16
ST72F324K4T6	QFP32
XC3S700AN-4FGG484I	BGA484
AD8155ACPZ	LFCSP64
