Discrete Semiconductor Module MSCSM170AM058CD3AG Chassis Mount Transistors

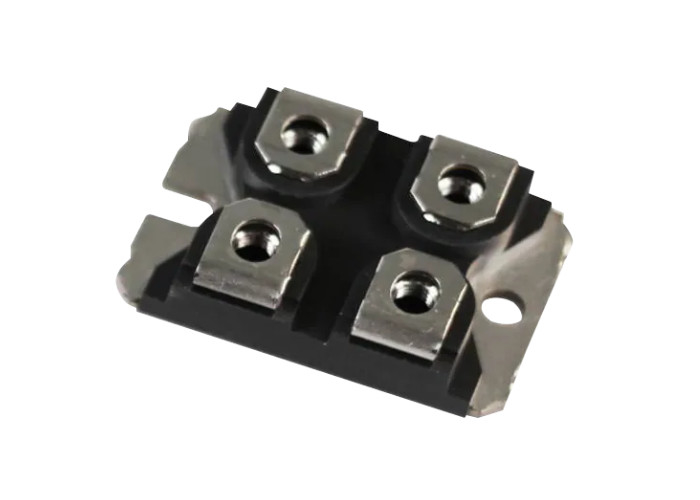

Large Image : Discrete Semiconductor Module MSCSM170AM058CD3AG Chassis Mount Transistors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MSCSM170AM058CD3AG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	Module
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

Discrete Semiconductor Module MSCSM170AM058CD3AG Chassis Mount Transistors

Description

Part Number:	MSCSM170AM058CD3AG	Mounting Type:	Chassis Mount
Operating Temperature:	-40°C ~ 175°C (TJ)	Gate Charge:	1068nC
Power - Max:	1.642kW	Product Status:	Active

Discrete Semiconductor Module MSCSM170AM058CD3AG Chassis Mount Transistors

Product Description Of MSCSM170AM058CD3AG

MSCSM170AM058CD3AG is a 1700 V, 124 A phase leg silicon carbide (SiC) MOSFET power module.MSCSM170AM058CD3AG operates at 1.3V forward voltage (VF) at 90A, 1.6kV reverse voltage (VR), and 1600V maximum repetitive reverse voltage.

Specification Of MSCSM170AM058CD3AG

Part Number:	MSCSM170AM058CD3AG	Vdss:	1700V
Current - Continuous Drain:	64A (Tc)	Diode Forward Voltage:	3.7V
Reverse Recovery Charge:	1300nC	Total Capacitance:	276pF

Applications Of MSCSM170AM058CD3AG

Welding
Solar
Induction heating
Medical
UPS

Other Supply Product Types

Part Number	Package
STM32F429ZGY6TR	LQFP-144
STM32F439ZGY6TR	WLCSP144
ACS758LCB-050B	CB-5
ADC0848CCN	DIP-24
TCD1710DG	DIP22
SN74CBTLV3245ADBQR	SSOP20

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
